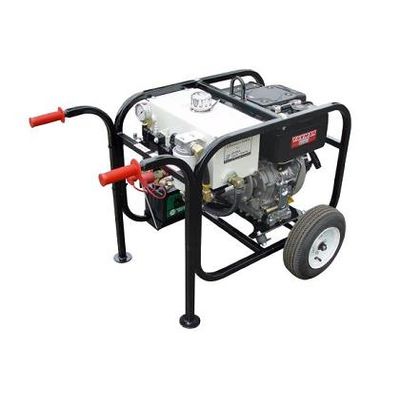

Hydra-Tech - Model HT11D - Portable Hydraulic Power Unit
FromHydra-Tech Pumps
This portable and rugged diesel power pack is ideal for driving our 3" trash pumps and even our 6" high-volume propeller pump. It also can provide hydraulic power to run many other hydraulic tools using the variable speed throttle to control hydraulic output.
Most popular related searches
hydropower
portable hydraulic power unit
hydraulic oil cooler
hydraulic power unit
diesel power
fuel tank
diesel engine
electrical engineering
- H 25" (63.5 cm) x W 20" (51 cm) x L 30" (76 cm)
- Weight: 225lbs. (102 kg)
- Hydraulic Oil: SAE 10W or 20W Type AW (also: Dexron ATF or Biodegradable oil)
- Engine: Yanmar L100V Diesel
- Horse Power: 9.1 @ 3600 RPM
- Hydraulic Output: Variable Max 6 GPM (23 LPM)
- Hose Port Size: 1/2" NPT
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 4 U.S. Gallons (15.1 Liters)
- Fuel Tank Capacity: 1.2 U.S. Gallons (4.7 Liters)
- Fuel Consumption: Approx. .5 U.S. Gal/Hr (1.9 Liters/Hr)
- Dimensions: H 25" (63.5 cm) x W 20" (51 cm) x L 30" (76 cm)
- Yanmar air-cooled Diesel Engine with Electric Start
- Roll Cage Frame with Single Point Lifting Eye
- Gear-Type Hydraulic Pump
- Spin-On Return Filter W/ Indicator
- Variable Speed Throttle Controls Hydraulic Outputs
- Hydraulic Oil Cooler
- Tank Top Filler/ Strainer
- HTMA Quick - Disconnect Couplings
- System Relief Valve
- Made in USA
- Liquid Filled Pressure Gauge
- Fluid Level/ Temperature Gauge
