Hydra-Tech - Model HT35DVY -Portable Hydraulic Power Unit
FromHydra-Tech Pumps

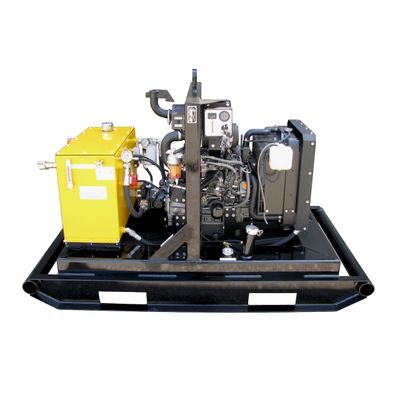

This power unit is powered by a T4F Yanmar diesel engine and is designed to drive several of our pump models including the S4SCR. A large, built-in fuel tank allows this unit to run up to 15 hours between refills. Other equipment that require flows to 20 GPM may also operate from this power unit.
Most popular related searches
hydraulic power unit
hydropower
portable hydraulic power unit
fuel tank
diesel power unit
diesel power
diesel engine
- Weight: 1520 lbs (691 Kg)
- Hydraulic Oil: SAE 10W or 20W (ISO 32 or 46) Type AW
- Engine: Yanmar 3TNV88C-DYEM Liquid Cooled Diesel (T4F)
- Horse Power: 35 HP (26 KW) @ 3000 RPM
- Hydraulic Output: Variable, Max. 20 GPM (76 LPM) @ 2500 PSI
- Hose Port Size: 3/4" NPT
- Oil Filtration: 10 Micron (Standard)
- Oil Reservoir Capacity: 30 U.S. Gallons (113 Liters)
- Fuel Tank Capacity: 42 U.S. Gallons (159 Liters)
- Fuel Consumption: Approx. 2.4 U.S. Gal/Hr (9 Liters/Hr)
- Dimensions: H 51″ (130 cm) x W 58″ (147 cm) x L 79″ (200 cm)
- H 51″ (130 cm) x W 58″ (147 cm) x L 79″ (200 cm)
