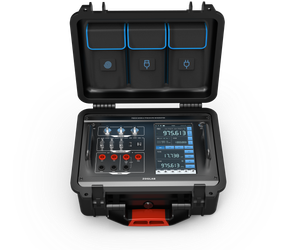

ZOGLAB - Model PG600 - Portable Pressure Generator

PG600 mobile pressure generator has a built-in high accuracy pump, and the pressure control resolution is 0.001hPa.

Most popular related searches

Pressure control range 100~1100hPa
Pressure control accuracy ±0.010%FS
Pressure control resolution 0.001hPa
Pressure control stability 0.002%FS (0.002%FS after stable for 10 seconds)
Pressure control speed 5~100hPa/min adjustable（load 1L）
Display 7" 480×800 TFT LCD display
Touch panel Capacitive touch screen
Backlight LED backlight, brightness adjustable
Communication Interface RS232 PTB210 / 220 / 330 Pro×1, Common RS232×2, USB, USB storage, HART, Wi-Fi (optional function), BT (optional function)
Pressure interface ф5 interface absolute pressure×1, differential pressure×2
Power supply 240V 90W AC-DC adaptor / built-in lithium polymer battery
Battery Lithium polymer battery 14.8V / 8000mAh
Battery lifetime 8 hours(continuous work) / 90 days standby
Working temperature 10~40℃
Working humidity 10%~95%RH（No condensation）
Working pressure 100~1100hPa
Storage temperature -20~70℃
Preheating time <5 mins
Logging interval 1 second~24 hours
Data recording time According to the internal memory capacity
EMC EN50081-1 Class B, EN50082-1 Class B
ESD Protection ±25KV
IP Class IP67（when the outer case is open）
Weight 8kg
Dimenstions 335×290×155mm
