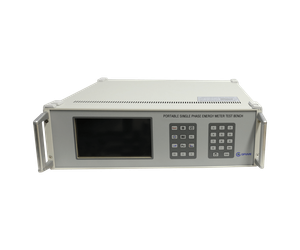

GFUVE - Model GF102 - PORTABLE SINGLE PHASE ENERGY METER TEST BENCH
GF102 series portable single phase energy meter test bench used to test 1pc or 3pcs single phase energy meter or AC meter at same time. Adopt mature signal synthetic and power amplifier technology, high precision voltage source and current source output from 120A/600V. Widely used in lab and field, and then as single phase standard source. It is suite for electricity meter manufacturing enterprises, scientific research institutes, metrological service institutions, electric power companies etc. https://www.gfuvegroup.com/energy-meter-test-equipment/portable-single-phase-energy-meter-test-bench.html
■ Measuring the distortion factor;
■ Multi load point setting output;
■ Testing meter installations in 1P2W;
■ Many plan auto test for energy meter error;
■ Vector representation of the measuring values;
■ Measuring frequency, phase shift and power factor;
■ Measuring mechanical meter and electric meter error;
■ Energy dosing with built-in current source and voltage source;
■ Harmonic spectrum analysis for voltage and current up to the 63nd order;
■ Power and energy measurements for active, reactive and apparent power;
■ 3 channel voltage isolation
■ Test by automatic or manual
■ Accuracy class 0.02/0.05/0.1
■ 7 inch TFT touch color screen
■ Start testing and creep testing
■ Test 3pcs meter synchronously
■ 0-120A, 0-600V,40-70Hz, 0-360.000
■ Recorder 1000 sets energy meter data
■ Overload, short circuit, open circuit protection
■ Reference standard and power source integrated
Power plant;
Universities;
Panel manufacturer;
Research institutes;
Multimeter manufacturers;
Clamp meter manufacturers;
Oscilloscope manufacturer;
Electrical testing center;
Digital meter manufacturers;
ISO17025 Electrical laboratory;
Power engineering commissioning company;
Electricity power bureau & power company;
Electrical Department of industrial and mining enterprises;
