Wuhan Tianyu Intelligent Control Technology Co., Ltd.

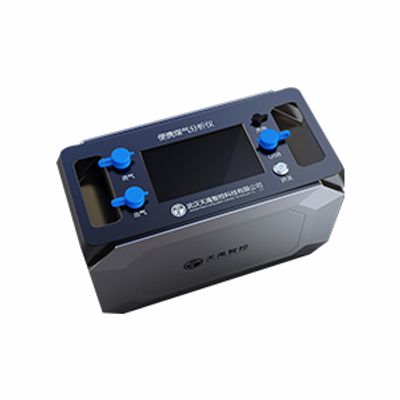

Tianyu - Model TY-6330P - Portable Syngas Gas Analyzer (CH4/CO2/CO/H2/O2/CxHy)
Portable syngas gas analyzer CH4/CO2/CO/H2/O2/CxHy TY-6330P adopts the imported gas sensor measurement using electrochemical sensor of oxygen, hydrogen measurement using MEMS TCD thermal conductivity sensor, methane and carbon dioxide, carbon monoxide, measured using non dispersive infrared gas sensor NDIR principle (selected according to user needs).
Most popular related searches
portable syngas analyzer
syngas analyzer
syngas
lithium battery
syngas product
blast furnace
coal gas
syngas production
- Using 5`` TFT LCD touch screen
- Measurement value display/real-time curve display
- Aluminum enclosure with smart dimensions (270*215*136mm, 3kgs)
- Data record, interval time adjustment, USB output to display history data
- Power intelligent management protect gas analyzer working at low battery
- Calibration menu and alarm setting with password protection
- One set back to factory setting
- coal chemical process
- steel making process as blast furnace, converter, coking, direct iron ore smelting reduction
-
syngas production from Biomass and coal gas gasification processes
