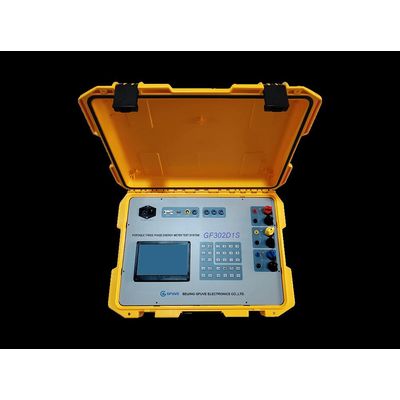

GFUVE - Model GF302D1S -PORTABLE THREE PHASE ENERGY METER TEST SYSTEM WITH REFERENCE STANDARD AND INTEGRATED CURRENT & VOLTAGE SOURCE
The GF302D1S portable three phase energy meter test system consists of an integrated 0.05% three-phase current and voltage source and a three-phase electronic reference standard meter of accuracy class 0.02. Characteristic features of the GF302D1S are its wide measuring range from 0 to 120A and 0 to 600V, high accuracy and high tolerance to unwanted external influences. The GF302D1S allows the monitoring of meter installations as well as analysis of the local mains conditions when it is as portable reference working standard. The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 7' touch LCD-display. Voltage & current harmonics output from 2 to 63 times. This model portable meter test system can be programmable by PC, automatic generation of energy meter error test report. https://www.gfuvegroup.com/
■ Weight 23Kg;
■ With 120A clamp on ct;
■ 7 inch TFT touch screen;
■ Accuracy class 0.02 or 0.05;
■ 1P2W, 1P3W, 3P3W, 3P4W;
■ Test by automatic or manual;
■ Start testing and creep testing;
■ Used on site or in the laboratory;
■ 0-120A/0-600V/40-70Hz/0-360.000;
■ The test Scheme can be programmed;
■ Recorder 10000 sets energy meter data;
■ 5A, 20A, 120A, 1000A, 3000A clamp optional;
■ With 2-63rd harmonics measurement function;
■ Overload, short circuit, open circuit protection;
■ With imp/kWh,imp/kvarh, imp/Wh, imp/varh etc;
■ Reference standard and power source integrated;
■ Measuring the distortion factor;
■ As three phase reference standard;
■ User friendly menu guided operation;
■ Measuring mechanical meter and electric meter;
■ As three phase voltage source and current source;
■ Measuring frequency, phase shift and power factor;
■ Automatic operation without need of an external PC;
■ Easy verification and analysis of meter installations;
■ Especially configured USB stick for storage of customer data;
■ Energy dosing with built-in current source and voltage source;
■ Testing all kinds of energy meter in 1P2W, 1P3W, 3P3W, 3P4W;
■ Harmonic spectrum analysis for voltage and current up to the 63rd order;
■ Power and energy measurements for active, reactive and apparent power;
■ Vector diagram display and phase sequence indication on integrated colored screen;
■ AMI design center;
■ Electrical laboratory;
■ Energy meter R & D;
■ Watt-hour meter factory;
■ Metrological service center;
■ Laboratories of power utilities;
■ Electricity meter manufacturers;
■ Electricity power bureau & power company;
■ National Metrology and testing department;
■ Electrical Department of industrial and mining enterprises;
