Model TE30 - Portable Three Phase Working Standard and Power Quality Analyzer
Electricity meters tester class 0.05% and 0.1%. Three phase tester of current transformers and analyser of power network quality. It makes possible electricity meters testing on the site or in the laboratory.
TE30 PC-Soft
The TE30 PC-Soft is a powerful software to expand capabilities of TE30 device of remotely connecting to device via USB, Bluetooth or Ethernet and enable use of a full array of testing and analysis. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.
- The TE30 PC-Soft is used to remote control and monitor of the device and allows to:
- measuring and recording of all three phase power network parameters with digital, graph and oscilloscope display,
- verification of power network wiring with measure and recording of power network parameters by displaying of: three phase voltage and current vector, neutral voltage and current vector, direction of vector rotation,
- testing of electricity meters directly on site,
- testing of LV and MV current CT and potential PT transformers simultaneously in three phases directly on site,
- measuring of power quality parameters according to IEC 61000-4-30,
- store, export to MS Excel, copy to system clipboard and print the result of measurements and tests.
TE30 is our newest universal 4-in-1 device combining functions of:
- Three-Phase Power Network Analyzer (Basic function)
- Energy Meter Tester (Basic function)
- Instrument Transformer Tester (Basic function)
- Power Quality Analyzer (REC function)
TE30 Working Standard is a continuation of Calport 100 (Three-Phase Power Network Analyzer - our bestseller since 1999) and NSQ400 (high performance Power Quality Analyzer).
In one case, TE30 can offer all you need and more:
- High accuracy: three-phase working standard class 0.05%
- Wide input ranges: 0.05-600V and 0.001-12A (up to 40kV and 3000A with clamps)
- Quick measurements, analysis and reports of ALL power quality parameters
- Automatic tests of energy meters and PT (VT), CT transformers
- Easy to carry, strong and waterproof (IP67) transportation case for TE30 with accessories, ready to use on site just after opening the cover
- Professional service and support (it doesn`t matter if you have a complex or trivial issue)
- Low price in comparison to the best performance
Read the Data sheet and the rest of the website to know all functions of the TE30 Working Standard. You will find there information about:
Measurement function:
- electrical parameters displaying in table, vector, oscilloscope, bar and trend chart format
- energy meter testing of meter error, register and maximum power with all type of pulse outputs (disc mark, LED, LCD, S0)
- three-phase CT and PT (VT) transformers testing of ratio, phase shift and burden with easy wiring resistance calculation
- measuring up to 63rd harmonics and interharmonics
- calculating all type of active, reactive and apparent energy: P, P+, P-, Q, Q+, Q-, S, PH1, PH1+, PH1-, QH1, QH1+, QH1-
- recording and power quality analysis according to IEC 61000-4-30: dips, swells, interruptions, signal voltages, voltage unbalance, flicker
Other advantages:
- independent electronic compensated clamps allow calibration, service, later purchase without factory return of the device and interchange of clamps between different TE30 Working Standard
- powering from: line 50-450V AC/DC or battery up to 2 hour lifetime
- light weight: 2kg (4.4lbs) with batteries
- large 7″ 800x480 LCD colour display with touch screen easy to use with gloves
- screen capture and screen printing function
- USB, Ethernet and Bluetooth interface for printer, PC computer, tablet or Internet communication
- up to 32GB SD memory card for data
- measurement reports and printscreens printing on site by the wireless printer
- context help with circuit diagrams
- impulse input and output up to 200kHz with automatic constants calculating in imp/kWh, imp/Wh, Wh/imp and Hz in all type of powers
- system configuration can be update at any time
- optionally external GPS modem synchronization
- producer warranty
- Calibration Certificate

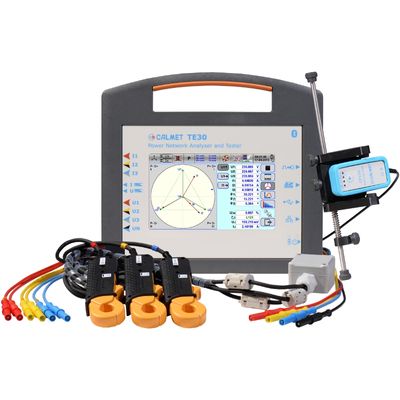

TE30 Portable Three-Phase Working Standard uses large 7 inch LCD display with touch panel for setting and presenting measurements. TE30 is able to save measurement data on SD card, save a BMP screen capture and print measurement report directly to Bluetooth printer. Analyzer can be also connected by USB, Bluetooth or LAN with PC computer or Tablet and setting by TE30 PC-Soft.
TE30 is an universal device and can be used as a:
- Three-Phase Power Network Analyzer
- Energy Meter Tester
- Instrument Transformer Tester
- Power Quality Analyzer IEC 61000-4-30
Three-Phase Power Network Analyzer
TE30 Analyzer is used to measure and refresh all power network parameters in real time. Data can be displayed in four different ways: table, vectors diagram, oscilloscope diagram and harmonics in bar and table format.
TE30 Tester can be used for automatic testing instrument transformers like LV and MV current CT and potential PT (VT) directly on site.
Burden Test function is used for calculating of current transformer CT and potential transformer PT burden directly in percentage (Percent Nominal Load) simultaneously in three phases.
Calculating of phase shift of load is enabled.
For easiest measurements, data from calculation of wiring and fuse resistance can be included into burden error.
CT Ratio Test function is used for calculating of current transformer CT ratio and phase shift error directly in percentage simultaneously in three phases.
PT Ratio Test function is used for calculating of potential transformer PT ratio and phase shift error directly in percentage simultaneously in three phases.
