Model TE30 Lite - Portable Three Phase Working Standard and Power Quality Analyzer

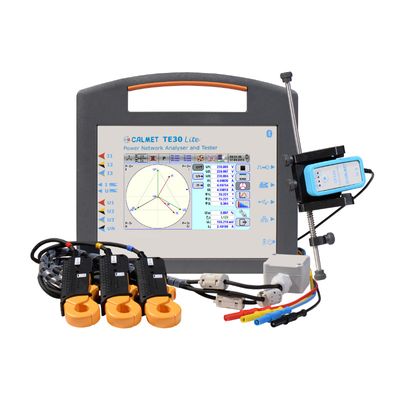

TE30 Lite Portable Three-Phase Working Standard uses large 7 inch LCD display with touch panel for setting and presenting measurements. TE30 Lite is able to save measurement data on SD card, save a BMP screen capture and print measurement report directly to Bluetooth printer. Analyzer can be also connected by USB, Bluetooth or LAN with PC computer or Tablet and setting by TE30-PC Soft.

TE30 Lite is an universal device and can be used as a:

• Three-Phase Power Network Analyzer
• Energy Meter Tester
• Instrument Transformer Tester
• Power Quality Analyzer IEC 61000-4-30

Three-Phase Power Network Analyzer

TE30 Lite Tester is used to measure and refresh all power network parameters in real time. Data can be displayed in four different ways: table, vectors diagram, oscilloscope diagram and harmonics in bar and table format.

Table Display function is used for indicating all relevant parameters of three phase power network. The actual value of parameter helps to analyse circuit condition like: voltage missing, current missing, current reversal, asymmetry, etc.

Vectors Display function is used for verification of power network wiring and meter connection. Three orientation of vectors can be chosen.

Additionally the voltage unbalance (voltage asymmetry), phase sequence, neutral voltage and neutral current is calculated.

Oscilloscope Display function is used for displaying the waveform of voltage and current change in time. Six parameters and 1, 2 or 4 periods can be displayed at the same time (picture presents an example waveform of 1-phase Switching Power Supply input voltage and current).

Harmonic Measurement function is used for measuring amplitude and phase of harmonic in voltage, current, active power and reactive power up to 63rd harmonic. The measured harmonic can be displayed in tabular and bar format. Total harmonic distortion THD, total distortion factor TDF, crest factor CF, total interharmonic distortion TID will be displayed as additional information about a form of analysed voltage and current.

Energy Meter Tester

TE30 Lite Tester offers automatic and easy to use function for energy meter testing. TE30 Lite can be used to test error, test register and Pmax test directly on site with used load. All functions can measure energy for active, reactive and apparent power P, P+, P-, Q, Q+, Q-, S and energy for the first harmonic of active and reactive power PH1, PH1+, PH1-, QH1, QH1+, QH1-.

Meter error calculating (partial errors, average error, standard deviation) directly in [%] with:

- method of settings time of measurements or number of impulses,

- automatic identification meter constant,

- automatic determining measurement time or number of pulses.

Register testing for calculating of register error directly in percentage. Three registers can be verified at the same time and any combination of measured power can be chosen.

Maximum power measuring for testing of maximum power (demand) meters.

Measurement data can be visualized in form of trend chart or table and are easy to save, read in the future and print.

Instrument Transformer Tester (TT function)

TE30 Lite Tester can be used for automatic testing instrument transformers like LV and MV current CT and potential PT (VT) directly on site.

Burden Test function is used for calculating of current transformer CT and potential transformer PT burden directly in percentage (Percent Nominal Load) simultaneously in three phases.

Calculating of phase shift of load is enabled.

For easiest measurements, data from calculation of wiring and fuse resistance can be included into burden error.

CT Ratio Test function is used for calculating of current transformer CT ratio and phase shift error directly in percentage simultaneously in three phases.

PT Ratio Test function is used for calculating of potential transformer PT ratio and phase shift error directly in percentage simultaneously in three phases.

Power Quality Analyzer IEC 61000-4-30 (Rec Function)

For easy real time measurements of power quality a standard function Power Network Analyzer can be useful.

Additionally special function Trend Chart Display can easy visualize of measurement result in real time mode.

Trend Chart Display function is used for displaying the changes in time of all relevant parameters of three phase power network.

Analyser can store all parameters averaged in 1-100 seconds step time.

User can display simultaneously up to 3 trend charts of any stored parameters.

For advanced and long term analyse of power quality TE30 offers a Recording function.

Recording function is used for registration of all network parameters and additionally for measure dips, swells, interruptions, interharmonics, signal voltages and flicker.

Data with time stamp are stored in the SD card (up to 32GB) for archive and further analyse in TE30 PC-Soft program. It is able to check for EN 50160 compatibility or for individual users requirements.

TE30-PC Soft

The TE30-PC Soft is a powerful software to expand capabilities of TE30 Lite device of remotely connecting to device via USB, Bluetooth or Ethernet and enable use of a full array of testing and analysis. Software is dedicated for PC computers with Windows 2000/XP/Vista/7/8/10 and tablets with Windows 8.1/10.

The TE30-PC Soft is used to remote control and monitor of the device and allows to:
• measuring and recording of all three phase power network parameters with digital, graph and oscilloscope display,
• verification of power network wiring with measure and recording of power network parameters by displaying of: three phase voltage and current vector, neutral voltage and current vector, direction of vector rotation,
• testing of electricity meters directly on site,
• testing of LV and MV current CT and potential PT transformers simultaneously in three phases directly on site,
• measuring of power quality parameters according to IEC 61000-4-30,
• store, export to MS Excel, copy to system clipboard and print the result of measurements and tests.

TE30 Lite is our newest universal 4-in-1 device combining functions of:

• Three-Phase Power Network Analyzer (Basic function)
• Energy Meter Tester (Basic function)
• Instrument Transformer Tester (TT function)
• Power Quality Analyzer (REC function)



TE30 Lite Tester is a continuation of TE30 Lite (Three-Phase Power Network Analyzer and Tester of Electricity Meters and Instrument Transformers.



In one case, TE30 can offer all you need and more:

• High accuracy: three-phase working standard class 0.2%
• Wide input ranges: 0.05-600V and 0.01-3000A with clamps)
• Quick measurements, analysis and reports of ALL power quality parameters
• Automatic tests of energy meters and PT (VT), CT transformers
• Easy to carry, transportation case for TE30 Lite with accessories, ready to use on site just after opening the cover
• Professional service and support (it doesn`t matter if you have a complex or trivial issue)
• Low price in comparison to the best performance



Read the Data sheet and the rest of the website to know all functions of the TE30 Lite Tester. You will find there information about:



Measurement function:

• electrical parameters displaying in table, vector, oscilloscope, bar and trend chart format
• energy meter testing of meter error, register and maximum power with all type of pulse outputs (disc mark, LED, LCD, S0)
• three-phase CT and PT (VT) transformers testing of ratio, phase shift and burden with easy wiring resistance calculation
• measuring up to 63rd harmonics and interharmonics
• calculating all type of active, reactive and apparent energy: P, P+, P-, Q, Q+, Q-, S, PH1, PH1+, PH1-, QH1, QH1+, QH1-
• recording and power quality analysis according to IEC 61000-4-30: dips, swells, interruptions, voltage unbalance



Other advantages:

• independent electronic compensated clamps allow calibration, service, later purchase without factory return of the device and interchange of clamps between different TE30 Lite units
• powering from: line 85...265V/47...63Hz AC or 5...12V/1.5A DC
• light weight: 1.6kg (3.5lbs)
• large 7″ 800x480 LCD colour display with touch screen easy to use with gloves
• screen capture and screen printing function
• USB, Ethernet and Bluetooth interface for printer, PC computer, tablet or Internet communication
• up to 32GB SD memory card for data
• measurement reports and printscreens printing on site by the wireless printer
• context help with circuit diagrams
• impulse input and output up to 200kHz with automatic constants calculating in imp/kWh, imp/Wh, Wh/imp and Hz in all type of powers
• system configuration can be updated any time
• producer warranty
• calibration certificate
