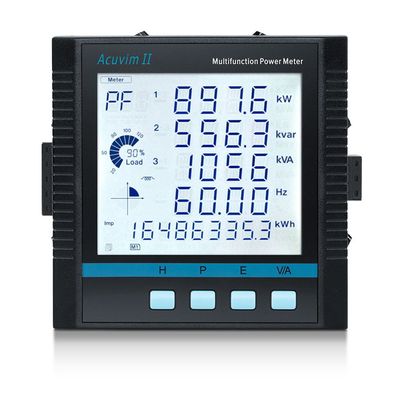

Accuenergy - Model Acuvim II Series -Power and Energy Meters
The Acuvim II Series power and energy meters are the simple, robust solution for power monitoring, kWh metering, power quality analysis, and more. This multifunction meter is engineered for easy integration into any project environment and a wide array of plug-in expansion modules facilitate communication on over 15 different industry-standard protocols.
- Revenue grade: ANSI C12.20 class 0.1 & IEC 62053-22 class 0.1s
- High Resolution Frequency Measurements - 0.001Hz
- High Speed update rate - less than 20ms
- 4th CT input- Measure Neutral Current
- Dual Ethernet Ports with both RSTP bridge daisy-chain mode & separately configurable network
- BTL Listed certification for BACnet IP and BACnet MS/TP
- Data Logging up to 8GB with AXM-WEB2 and AXM-WEB2 FOLC module
- Multi-Protocol: Modbus-RTU & DNP 3.0 ready. Module support for multiple industrial protocol such as Modbus TCP/IP, BACnet, IEC 61850, EtherNet/IP, and MQTT
- Multiple CT output options: 5A/1A, 333mV and Rogowski Coil, 80ma/100mA/200mA
- Designed with industry-leading cybersecurity and an anti-tampering seal
- Configure as a panel mount meter with digital display or DIN rail mount transducer
What is AC Energy Metering?
An AC energy meter is a specialized device engineered to collect a variety of AC power or energy data for a single load or an entire system. Generally installed adjacent to an electrical panel or within switchgear, an AC energy meter may continuously gather data to provide detailed insight into consumption patterns, load profiles, and system performance. In addition, some AC energy meters also measure power quality parameters, allowing facilities professionals to stay ahead of harmful PQ issues, protect sensitive equipment, and reduce downtime.
Customize Your Meter Configuration
The Acuvim II is a premium power and energy measurement instrument capable of delivering superior results across a wide range of AC measurement applications. With a variety of customizable options including form factor, current sensor choices, & communication protocols, easily configure the meter to match any project objective.
Select an Acuvim II Model
Available in four different configurations, each one engineered for a specific project environment.
Choose a Form Factor
Configure as a Panel Mount meter with a digital display or as a DIN Rail Transducer.
Choose a Current Input Option
Choose a current input option for the Acuvim II: 5A/1A, Rogowski Coil (RCT), 333mV, or 80/100/200mA.
Select a Power Supply
Two power supply options: P1 is for 100-415Vac (50/60Hz) and 100-300Vdc systems. P2 is compatible with a 20-60Vdc source.
Select an Optional Communication Module
The AXM line of expansion modules increases the range of available protocol options.
Choose Optional Accessories
Customize your meter with a range of helpful accessories.
Access robust data logging capabilities by pairing the Acuvim II energy & power meters with the AXM-WEB2 module. With 8GB of internal memory, capture an array of metering parameters for future download or analysis.
Key Specifications:- Generate historical logs for selected parameters
- Equip the AXM-WEB2 module to expand the memory to 8GB with an up to 50ms logging interval
- The real time clock accurately timestamps all logged events
