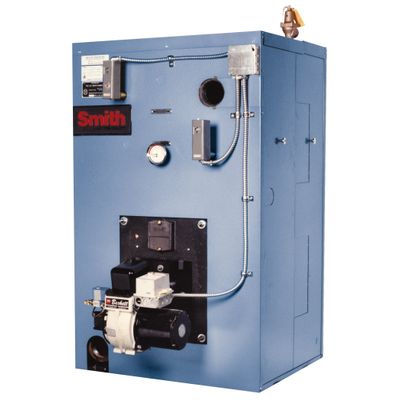

Smith - Model 19HE Series -Power-Burner Boiler

19HE Series Boiler Features

• Rugged cast iron heat exchanger sections with integral flue collector
• Flexible, high temperature hydronic seals and ceramic fiber flue gas rope seals reduce assembly time and require no special assembly tools
• Short, individual draw rods simplify assembly and reduce stress
• Front and rear observation ports to visually inspect the flame and combustion chamber
• Easy-to-remove, front access covers and side mounted cover plates for quick and easy boiler cleaning
• Side mounted tankless coil domestic water heaters (when provided) for easy inspection and/or replacement
• Integral cast iron smoke hood with fail-safe breeching damper that is easily adjusted and locked into position
• Factory packaged or knocked down for field assembly
• Choice of Beckett, Carlin, Powerflame and Gordian-Piatt power burners with a wide array of controls (when provided)

All Boilers

• Cast iron wet-base sections rated for 80 psi (water) and 15 psi (steam)
• ASME safety relief valve
• Hi-limit manual reset control
• Operating temperature or pressure control
• Burner mounting plate with insulation block
• Insulated metal jacket, steel floor rails and flue brush

Water Boiler/Burner Units

• Temperature and pressure gauge

Steam Boiler/Burner Units

• Steam pressure gauge
• Low water cut-out with water gauge glass

• Tankless coil domestic water heaters
• CSD-l, FM, or lRI approved fuel trains
• Inspection tappings, return yoke and barometric dampers
