Terasaki/Enerlux - Model PFC - Power Circuit Breakers and Power Factor Correction Equipment
Terasaki, the exclusive distributor in the UK for low, medium, and high voltage power factor correction products, offers a comprehensive selection of modular cassettes and prefabricated freestanding capacitor banks designed for seamless integration into existing switchboards. These cassettes include self-healing three-phase PRT capacitors made of metalized polypropylene film, encased in a robust extruded aluminum shell with a steel disk seal to protect against environmental exposure. The capacitors feature an M12 x 12 mm fixing spigot for grounding, with a fiberglass-reinforced mount that supports the connection terminals. Safety is prioritized with an overpressure disconnecting device that halts power in case of overvoltage incidents. Installation is straightforward, with significantly reduced module widths to optimize switchboard size, and options for wall or free-standing units ranging from 20-500 KVAR. Terasaki's power factor regulators are equipped with up to 6 or 12 automatic cut-out steps, ensuring optimal performance and reliability.
Terasaki is the exclusive UK distributor of a complete range of products and systems for low, medium and high voltage power factor correction. If you are outside the UK Contact us for details of local suppliers.

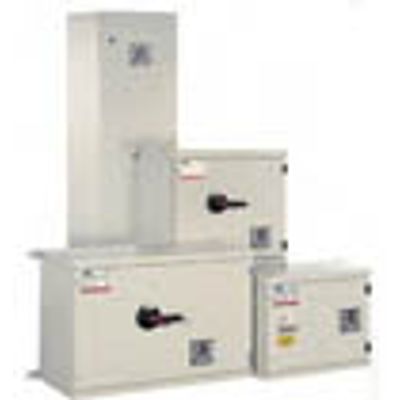

We have a huge range of affordable modular cassettes for switchboard installation and prefabricated freestanding capacitor banks.
We hold a full stock of modular cassettes which we can despatch next day.
Terasaki/Enerlux three phase PRT capacitors are self-healing and consist of three single-phase elements made of metalised polypropylene film with a delta connection in a cylindrical casing of extruded aluminum. The fixing spigot is M12 x 12 mm and is used to earth the capacitor.
The capacitor is enclosed with a steel disc on the aluminum casing, ensuring a perfect air and water seal. The capacitors are designed with an overpressure disconnecting safety device. This protection immediately cuts off the power supply to the capacitor in the event of a fault due to excessive overvoltage. A fiberglass reinforced mount supports the three connection terminals. We recommend you leave at least 25 mm clear space above the connection terminals to allow the overpressure device to work properly.
All capacitors are manufactured to the highest standard (IEC 60834-1/2) ensuring excellent duty and performance.
