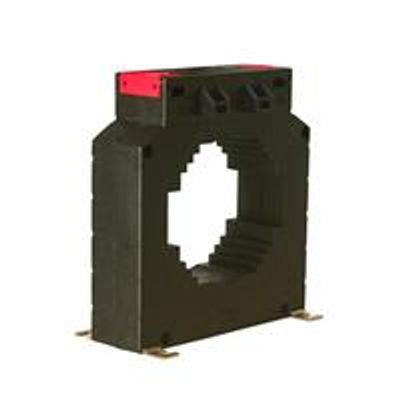

Model BCT Series - BCT145100 - Power Distribution Current Transformer

BCT series power distribution current transformer BCT145100 - 600A/750A/800A/1000A/1200A/1500A/1600A/2000A/2500A - 5A/1A/0.1A. BCT series are the current transformer which are designed for industrial equipment.

Most popular related searches

power distribution transformer

current transformer

power distribution

current voltage transformer

distribution transformer

power transformer

distributive power

distributed power

Mounting type: Sub-plate / suspending type
Output current: 0.1A, 1A, 5A (can be customized)
Core material: Silicon Steel
Installation place: Indoors
Flame resistance: UL94-V0
Working temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Altitude: ≤1000m
Atmospheric conditions: No serious pollution
Dielectric strength: AC 3KV/1min 50Hz (secondary/shell)

Model BCT Series - BCT145100 - Power Distribution Current Transformer

Technical Data
