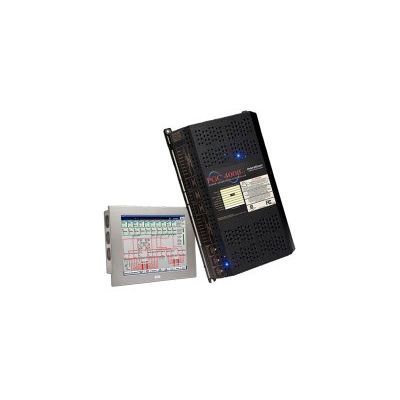

PGC - Model 4000v2 - Power Generation Controller

• Run Time Configurable programming allows integration with multiple gen set manufacturers
• PGC 4000 v2 Technology: 1Gbps LAN Network Speed Capability, PC Based Peripherals for Service Support (USB/ETHERNET), Windows 7 Compliant
• Integrated, Revenue Grade, Utility and Generator Metering with Power Quality Measurement
• Digital Engine-Generator Controls
• Digital Auto Synchronizing & kW/kVAR Load Sharing
• 17” Color Touch Screen Operator Display with Run-time Configurable Graphics.
• Digital Protective Relaying for Generator & Utility Supply per IEEE & ANSI standards
• High Speed/Noise Immune Ethernet-based Communications
• Compliant with IEEE 1547 Distributed Generation Interconnect Standard
• Certified to UL 508A.

• Power Supply:10 - 35 Vdc
• Temperature  Range:-5 to 50 °C
• Environmental  Rating:Nema 1
• Communication: Ethernet 10BaseT
• Safety /  Performance  Standards:UL 508, CSA C22.2 #14 Industrial Control Equipment Certification, ANSI C12.20 Class 0.2 Metering Accuracy, IEEE C37.90.2, IEEE Trial-Use Standard on Withstand Capability of Relay Systems to Radiated Electromagnetic Interference from Transceivers

• Industry Leading Technology (1Gbps LAN Network Speed Capability
• 10-15 Times More Processing Power = Future Feature Expansion Capability
• PC Based Peripherals for Easier Service Support (USB/ETHERNET
• 32 Digital Inputs (Includes 8 New Inputs on PGC 4000v2
• 24 Digital Relay Outputs (Includes 8 New Outputs on PGC 4000v2

The PGC 4000v2 and Series 2400 Switchgear are supplied with a vast array of advanced controls and monitoring features.
