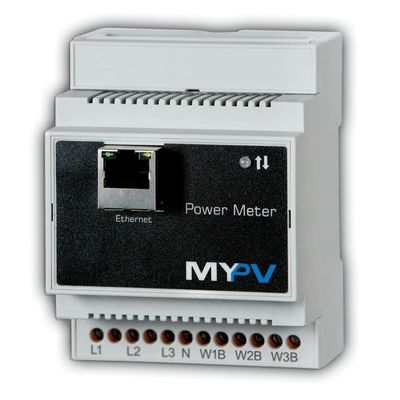

MY-PV - Model 20-0102 -Power Meter for 3-Phase

ACTHOR 9s for 3-phase heating elements up to 9 kW

With the same size as the AC•THOR, the AC•THOR 9s is also capable to control 3-phase immersion heaters linearly with an output of up to 9,000 watts.

ACTHOR 9s also for three single-phase heating elements

The ACTHOR 9s can also be used to heat up very large storage tanks. Up to three heating elements can be controlled linearly one after the other. The advantage: Hot water is available very quickly.

If there is a surplus of more than 3,000 watts available, the elements are also controlled in combination to maximise self-consumption and shorten the heating time.

Immersion heaters can also be located in different tanks. For example, one in the hot water boiler and one or two more in the buffer tank!

ACTHOR 9s for hot water and space heating

In addition to hot water heating, the ACTHOR  9s can also provide linear power control for electrical space heating in buildings.

In addition to the control of the immersion heater, it is possible to supply two heating circuits and control them independently of each other.

Optionally, a heat-pump can be switched via an integrated relay.

ACTHOR in combination with my-PV Power Meter

In combination with my-PV Power Meter, ACTHOR uses excess energy from your photovoltaic system to supply electrical heat sources such as immersion heaters, electric heating mats or infrared panels linearly with power. This ensures that self-consumption is optimised.

ACTHOR in combination with battery storage

In combination with compatible batteries, ACTHOR performs as a hybrid storage function. Not only the hot water, but also the building mass can be used as storage.

Thus, even with larger PV systems, excess PV energy is optimally used. Optimal priority regulation between battery and heat storage is guaranteed.

ACTHOR in combination with Smart Home

Thanks to its flexible control, the ACTHOR also communicates with energy management systems. As an alternative to my-PV Power Meter, the excess information can also be received from these sources. Thus there are no limits for the integration into individual home controls. Data can be visualized in the Smart Home System.

Advantages

• Linear power control 0-9 kW
• 3 controllable outputs
• For 3-phase immersion heaters with common neutral conductor
• Easiest heat production in three zones 3 x 3 kW
• Two-zone space heating possible
• Also combinable with heat pumps
• Minimum spatial requirements
• A system compatible with various inverter manufacturers, battery systems and smart homes
• Up to 85 % PV self-consumption without battery

Plug & Play - All connections pluggable!

• No time-consuming wiring
• No clamping points, no PG cable glands
• No cumbersome opening of housing
