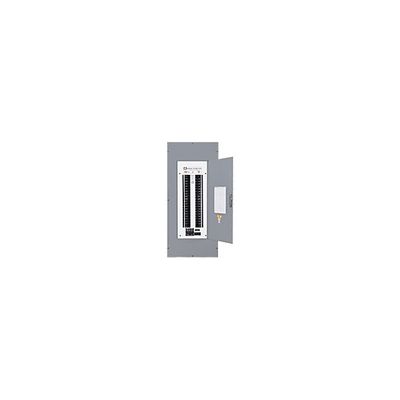

Power Metered Panelboard (PMP) with Remote Controllable Circuit Breakers

Reduces Energy Costs
The Benjamin ArcLight panel helps meet new government regulations for reduction of energy usage by providing the ability to easily control the times at which lighting usage occurs.

Comprehensive Communications
Communicates to ALL Energy Management and Building Automaton Controllers. Uses Ethernet, Serial, and wireless communications protocols.

Reduce Installation Costs
By combining the functionality of branch circuit breakers and control relays into one convenient package, the Benjamin ArcLight panel reduces wiring costs and saves on wall space.


Retrofits Made Easy
The Benjamin ArcLight panel uses the same industry standard panelboard sizes allowing direct replacement of existing lighting panels.

Flexible Mounting Options

• Surface or flush wall mount
• Raintight Enclosures
• Integration into Switchboards
• Retrofit to existing installations

Suitable for a Variety of Applications

• Energy Management Systems
• Building Automation
• Daylight Harvesting
• Lighting Control Systems

• Embedded Data Processing - All Power Circuit Data and Breaker Control is provided by our Master Processor, which makes the data available via standard memory mappings or through the embedded webserver. New data values are available at 1 second intervals.
• Embedded Webserver - This single board computer utilizes a LINUX operating system and provides a "Power Metering interface" (PMI) accessed using a standard web browser. Additionally, metered data values are archived locally at 1 minute intervals with up to 2 years of storage.
• Flexible Communications - Connectivity to the realtime and archived data is Tiade through standard industry communication protocols such as; BACnet/IP, Modbus TCP/IP, Modbus Serial, and XML-RPC.
• j Efficient Modularity - Power Metering and Breaker Control functionality are arranged in groups of three circuits. This offers cost effect)ve panelboard configurations.
