GeoSIG - Model BAT-Exxx -Power Module

SHARE

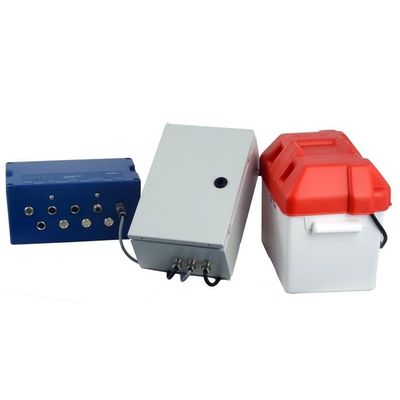

BAT-Exxx power module consists of GeoSIG Power Pack as well as an external battery inside a marine housing. The module is supplied with necessary cables for inter-connection and to connect to relevant equipment. The Power Pack contains a power supply and a charger specially designed to provide constant power to the GeoSIG instruments and charge an external lead battery.

Most popular related searches
battery capacity
battery terminals
battery charger
  • Power supply and charger
  • External batteries
  • Field friendly terminal connectors
  • Reliable power autonomy
  • Robust metal and marine housing

  • AC-Input Voltage: 90-264 VAC,  47 – 63 Hz,  Universal Input
  • DC-Output: 15V / 2.4A
  • Charge Voltage: 14.7V ± 0.2
  • Float Voltage: 13.8V ± 0.3
  • Charging Current: 4 A
  • Recommended battery capacity*: 15 – 100 Ah
  • Dimensions H×W×D: 300x200x120 mm

*Rec. value may vary – contact battery manuf. for details**Specifications subject to change without notice
