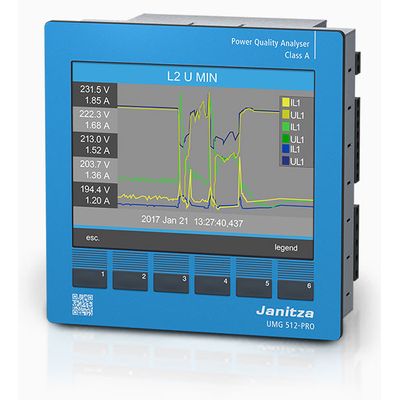

Janitza Class A - Model UMG 512-PRO - Power Quality Analyzer with RCM
Power Quality Analyzer, Class A with Multi-Colour Display. Measurement of Harmonics up to the 63rd for Voltage, Current, Power & Reactive Power. 4 Voltage & 4 Current Inputs with a continuous sampling rate of 20 kHz.
Most popular related searches
power quality analyzer
power quality
power quality standard
monitoring of power quality
power analyzer
energy consumption
energy management
power quality analysis
energy consumption monitoring
energy monitoring dashboards
- Short-Term interruptions >10ms, Transients >39µs, Starting Currents >10ms, Unbalance V/I, Half-wave RMS Recording (up to 11min)
- Flicker Measurement
- High Accuracy: Active Energy Class 0.2S Voltage 0.1%, Current 0.1%
- Modbus Master / Gateway & Modbus RS485
- FTP, SMTP, SNMP, NTP, PTP, Comtrade
- Jasic PLC Programming
- Memory 256 MB
- 2 RCM (Earth Leakage) Measurement Inputs
- Digital I/O, (2 Input & 2 Output) & 1 Analog Temperature Input
- Continuous monitoring of the power quality
- Harmonics analysis with power quality problems
- Checking the internal supply network according to EN 61000-4-7, EN 6100-4-15,
EN 61000-4-30 - Fault analysis in case of problems with the energy supply
- Documentation of the power quality for customers and regulatory authorities
- Ethernet Gateway for subordinate measurement points
- Report generator for power quality standards: EN 50160, IEE519, EN61000-2-4, ITIC …
- Report generator for energy consumptions
- Energy Dashboard
- Remote monitoring of critical processes
