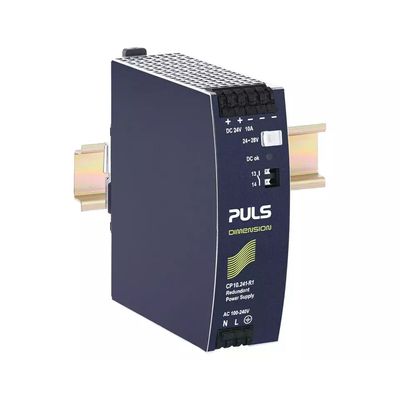

PULS - Power Supply with Integrated Decoupling Function 24 V, 10 A
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP10.241-Rx-xx units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or N+1 redundant power supply systems. The devices also offer PowerBoost: Power reserves of 20%, which may even be used continuously at temperatures up to +45°C. These redundancy power supplies come with three connection terminal options; screw terminals, springclamp terminals or plug connector terminals which allows replacement on an active application. High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Input data
AC Input voltage: AC 100 - 240 V (-15 %/+10 %)
DC Input voltage: DC 110 V - 150 V (± 20 %)
Harmonic correction: active
Power factor: 0.97
Input inrush current limitation: active
Input inrush current: 6 A / 9 A
External input fuse recommendation: B-6 A / C-6 A
Output data
Nominal voltage: 24 Vdc
Adjustment range: 24 V
Output current range: 10 A
Output current: 10 A at 24 V
Output power: 240 W
Power reserves: 20 % Power Boost
Derating: 6 W/°C for >+60 °C
Ripple and noise voltage max.: 50 mVpp
Overview
Dimensions (WxHxD): 39 mm x 124 mm x 117 mm
Weight per unit (excl. packaging): 600 g
Mounting method: DIN rail
Operating temp. range: -25 °C to 70 °C
Connection method: Spring clamps
Efficiency, typ.: 94.7 %
Power losses, typ.: 13.4 W
MTBF SN 29500 @ 40 °C (h): 641000 h
DC-OK signal: yes
- AC 100-240 V Wide-range input
- Width only 39 mm
- Built-in decoupling mosfet for 1+1 and n+1 redundancy
- Efficiency up to 94.7 %
- 20 % Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse breaking – 3 times nominal current for 12 ms
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25 °C and +60 °C
- DC-OK relay contact
- Current sharing feature included
