GRZ DASH - Power Systems
DASH Power Systems revolutionize energy storage by providing containerized, fully integrated solutions that combine GRZ Technologies' proprietary solid-state hydrogen storage with automotive-grade fuel cell systems and auxiliary components. These systems efficiently store electrical energy by being charged with hydrogen from any source and delivering on-demand power for various applications. The technology's versatility supports efficient and affordable power generation, enhanced grid management, and other essential services, making it suitable for both decentralized and larger scale implementations. With several versions available, DASH Power Systems offer the lowest levelized cost of electricity storage, making them an invaluable asset for industries requiring reliable and scalable energy solutions.Most popular related searches
fuel cell system
electric power
electrical power
electricity storage
solid hydrogen storage
hydrogen storage
fuel cell
power generation
power grid management
energy storage

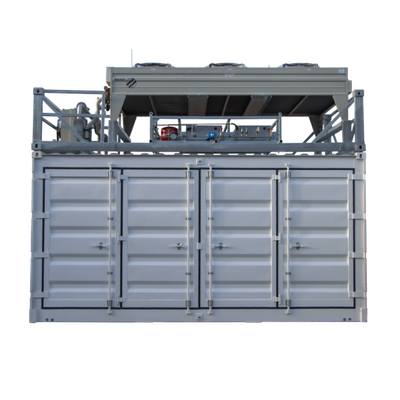

DASH Power Systems are containerized and fully integrated systems combining GRZ Technologies’ proprietary solid-state hydrogen storage, automotive-grade fuel cell systems, and auxiliary components. They are charged with hydrogen from any source and deliver on-demand electrical power for your application. DASH Power unlock the opportunities enabled by the hydrogen-based electricity storage. Whether it is for efficient and affordable power generation, enhanced grid management, system services, or other applications, our technology will enable you to store large quantities of electrical energy wherever you need it. DASH Power offers the lowest levelized cost of electricity storage for all decentral technologies.
DASH-175-900
Electrical Peak Power: 175 kW
Electrical Cont. Power: 75 kW
Storage Capacity: 45 kgH2 / 0.9 MWhe
Max Operation Time at 100% load: 12.0 h
Electrical Cont. Power: 75 kW
Storage Capacity: 45 kgH2 / 0.9 MWhe
Max Operation Time at 100% load: 12.0 h
DASH-260-1800
Electrical Peak Power: 260 kW
Electrical Cont. Power: 160 kW
Storage Capacity: 90 kgH2 / 1.8 MWhe
Max Operation Time at 100% load: 11.3 h
Electrical Cont. Power: 160 kW
Storage Capacity: 90 kgH2 / 1.8 MWhe
Max Operation Time at 100% load: 11.3 h
DASH-400-2700
Electrical Peak Power: 400 kW
Electrical Cont. Power: 240 kW
Storage Capacity: 135 kgH2 / 2.7 MWhe
Max Operation Time at 100% load: 11.3 h
Electrical Cont. Power: 240 kW
Storage Capacity: 135 kgH2 / 2.7 MWhe
Max Operation Time at 100% load: 11.3 h
DASH-500-3500
Electrical Peak Power: 500kW
Electrical Cont. Power: 320 kW
Storage Capacity: 175 kgH2 / 3.5 MWhe
Max Operation Time at 100% load: 10.9 h
Electrical Cont. Power: 320 kW
Storage Capacity: 175 kgH2 / 3.5 MWhe
Max Operation Time at 100% load: 10.9 h
DASH-500-4500
Electrical Peak Power: 500 kW
Electrical Cont. Power: 340 kW
Storage Capacity: 225 kgH2 / 4.5 MWhe
Max Operation Time at 100% load: 14.0 h
Electrical Cont. Power: 340 kW
Storage Capacity: 225 kgH2 / 4.5 MWhe
Max Operation Time at 100% load: 14.0 h
- Storage Capacity : 0.9 to 4.5 MWh
- Nominal output Power : 175 – 500 kW
- Electrical interface : 3-phase 400 V 50/60 Hz
- Hydrogen supply pressure : 30 – 45 bar(g)
- Hydrogen supply purity : 4.5 (> 99.995%)
- Communication interface : TCP/IP OPC UA and hardwired
- External Cooling requirements : None
- Container : 20ft-ISO hi-cube, C5 paint, equipped with doors, fans, ventilation, light, gas sensors, dry cooler, etc.
- Footprint : 14.8 m² (20 ft ISO container)
- Weight : < 29.25 t
- Ambient temperature : -5 – +38 °C
- Expected service life : > 20 years
