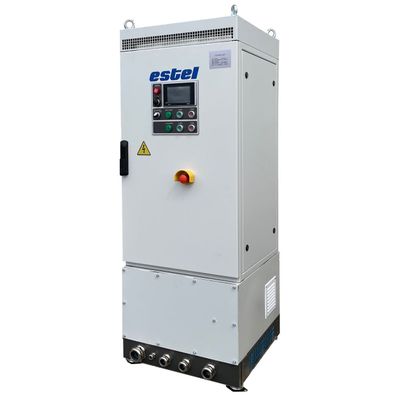

Estel - Model FCA/AR - Power Unit for Open Sea Conditions
Combined power unit FCA/AR consists of 400 Hz (5-250 kWt) converter and 28 ? (100-1200 ?)DC rectifier. Used as aircraft power source in open sea conditions. Combined frequency converter can be produced in standard set as well as according to special customer requirements.
Most popular related searches
frequency converter
voltage regulation
voltage regulating
voltage regulator
energy consumption
power factor
energy efficiency
- High efficiency
- Low energy consumption
- Compact design
- Low noise level
- Robust design
- Designed to comply with RoHS and REACH requirements
Designed on standard combined power unit with additional functions which provide more operable convenience in open sea working process:
- electric charge grounding bolts
- sealed cable input and connections
- door locks
- shock-absorbers
The equipment meets all the standards for extreme working conditions.
Output parameters:
- Rated output power, kVA: 5-250
- Rated output voltage phase/line, V: 3×115/200
- Output voltage frequency, Hz: 400±0,001
- Output voltage regulation accurancy, %:
- for the balanced load: ± 0,5
- for 30% unbalanced load: ± 0,5
- Total harmonic content, %:
- linear: ≤ 2
- non-linear load: ≤ 2
- Voltage modulation, %: ≤ 1
- Phase symmetry, electrical degree:
- for the balanced load: 120±1
- for 30% unbalanced load: 120±1
- Range of load change, %: 0-100
- Crest factor: 1,414±0,03
- Permissible overload, %:
- during 600 sec.: 125
- during 30 sec.: 200
- during 10 sec.: 250
- during 1 sec.: 300
- during 1 sec.: 300
Output parameters of rectifier AR:
- Rated output voltage, V: 28,0
- Pulsation coefficient of output volatge, %: < 7,4
- Rated output current, A: 100-1200
- Overall efficiency, %: ≥ 92
- Number of outputs: 1 or 2
- Overload current, for 2 seconds, A: 2400
Output parameters:
- Supply main rated voltage, V: 3 ? 380/220
- Supply main voltage permitted deviation, %: ± 5
- Supply nominal frequency, Hz: 60/50
- Supply main rated frequency, %: ± 10
- Line Current Distortion at nominal load THDI , %: ≤ 7
- Power factor at 100% load: ≥ 0,97
- Power consumption:
- in standby mode with the switch off switch, W: ≤ 50
- idling, ???: ≤ 1
- Power interruption: until 25 kw
- Overall efficiency, not less, %: ≥ 96
- Starting current: no, soft start
Additional data:
- Demensions (on the example of FCA-90/AR-600), W× H×D, mm: 1000× 1400× 1000
- Weight (on the example of FCA-90/AR-600), kg: ≤660
- Ingress protection: IP55
- Acoustic noise level at 1 m: 55 ??
- Maximum ambient temperature, º?: + 56°?
- Minimal ambient temperature, º?: - 40°?
- Relative humidity, %: 0 — 95
