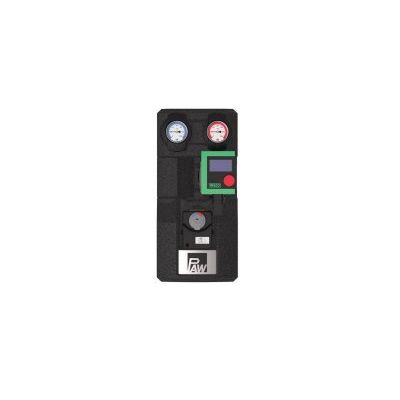

HeatBloC - Model K32 - DN 20 -Preassembled 3-Way Mixing Valve for Heating Systems
3-way mixing valve.Application range: for heating systems controlled by a mixing valve.Recommended range of application: up to 21 kW; 20 K up to 905 l/h
Max. pressure:6 bars
Kvs value:3,7
Max. operating temperature:110 °C
Equipment
Check valves:1 x 200 mm wc
Thermostat:Measuring range: °C
Dimensions
Nominal diameter:DN 20 (¾")
Connection generator:1" external thread, flat-sealing
Connection consumer:¾" internal thread
Installation length:255 mm
Width:180 mm
Height:385 mm
Centre distance:90 mm
Materials
Valves and fittings:Brass
Gaskets:EPDM / NBR
Insulation:EPP
Flat-sealing connections ¾`` internal thread / 1" external thread
with 1" union nut for assembly on PAW distribution manifolds
with PAW mounting equipment, the HeatBloCs can be installed on wall brackets
Large ball valve handles,
easy handling, visible closing position
3-way mixing valve
completely made of brass, the linear characteristic prevents temperature variation, the flow line can be isolated, so that the pump can be replaced without draining.
For mounting actuators of other manufacturers, you need the adapter set item no. 705580.
PAW actuator SR2
with 1.5 m cable and mounting set for snap-in assembly on the mixing valve, suited for flow on the right or left side, change-over switch for manual / automatic operation, supply 230 V / Hz, torque at least 2 Nm
EnEV conform functional insulation
made of durable elastic EPP, complete insulation of valves and fittings, ventilation opening to cool the pump
the insulation for the distribution manifold is integrated in the heating circuit insulation
Free access to the pump head
by simply removing the front insulation shell
Check valve in the return pipe
can be opened, 200 mm wc, spring-loaded, thus suited for horizontal and overhead installation
Flow on the right = standard
Flow and return line can be changed on site, also for heating circuits with mixing valve
All water-carrying parts are made of brass
Full metal thermometers
can be pulled off, with immersion sleeve integrated in the ball valve
PAW heating pumps with high-efficiency (ECM) technology
fitted with 2 m cable, completely premounted, integrated in the insulation, pressure tested, with serial number, perfectly designed system, pump characteristics, EuP/ErP READY
Pump can be isolated,
so that it can be replaced without draining
