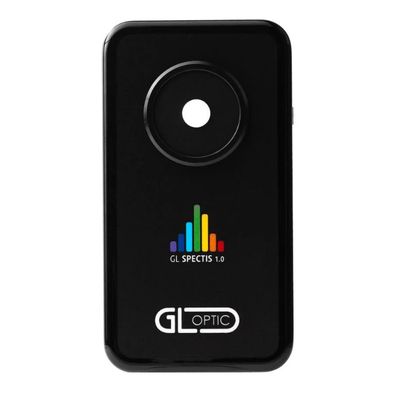

GL - Model Spectis 1.0 - Precise Light Measuring Technology
This high-quality and easy to operate device gives you all you need for reliable light measurement. Implementing this practical instrument in your development and production environments can help you improve the light quality of your product and accelerate development. With its coded and interchangeable measurement head, GL SPECTIS 1.0 can be combined with optical probes, integrating spheres or goniometers to measure any type of light sources, displays as well as LED lights. Thanks to its high sensitivity and accuracy, it is the perfect solution for light measurement.
Most popular related searches
Compact yet powerful
Don’t let the small size fool you. GL SPECTIS 1.0 handheld spectroradiometer can measure any light source and provide the results you need. Evaluate products meet spec before you buy, develop better products faster, or ensure your products are manufactured properly. GL SPECTIS 1.0 can be configured to do it all.
Versatile spectroradiometer
Depending on your application you can use this handheld spectroradiometer as an illuminance / irradiance meter when you connect it to your PC, you can plug it to a small integrating sphere for single LEDs color and lumen measurements or combine it with a larger integrating sphere for the testing of luminous flux and efficacy of LEDs. Luminance testing is also possible with the use of dedicated ADDITIONAL PROBES.
Cost effective
GL SPECTIS 1.0 is a measuring device suitable for the final assessment of lamps as well as for testing of complete lighting installations. Combining high accuracy and low cost, it is an excellent instrument choice for common LED measurement applications.
Handheld spectroradiometer
GL SPECTIS 1.0 handheld spectroradiometer was developed to allow consultants outside the laboratory to verify the quality of light, but providing a portable, dependable and repeatable light measurement device. Our design focus was simple – to provide lighting professionals with a practical device they could trust. No need to send everything to the main laboratory for testing when you need to measure and decide on site.
Based on Hamamatsu sensor
This device is equipped with the Hamamatsu sensor to provide stability, low noise electronic to increase its dynamic range, temperature sensor to monitor and compensate for the dark current shift. We added the system of interchangeable accessories to support different types of measurements. Finally, it is equipped with a precisely designed measurement head to provide reliable lighting measurement. Initially used as a handheld device, despite its small size, it is a powerful instrument which becomes a part of many different light measurement systems we provide today.
Ideal for LEDs measurements
The GL SPECTIS 1.0 spectrometers optical system uses a miniature collimating lens with nano-imprint of diffraction lines and a CMOS image sensor working in the range of 340-780 nm. It is a miniature low stray light system providing a 1.7 nm data acquisition interval which is ideal for the measurement of LEDs, OLEDs and other light sources in the visual range.
Low noise, high speed data
The electronic board ensures the proper speed of data transfer and very low noise. The temperature sensor installed on the board monitors the change of the ambient temperature and its influence on the measurement stability.
Software corrections
The SP-X driver software includes any necessary correction procedures to reduce stray light, bandpass error, noise level and background level to achieve the best spectra representation and highest measurement accuracy. The data acquired are calculated according to CIE norms to obtain the right color calculation for LED and other light sources.
