ASHAPOWER - Premium Quality High power Inverter

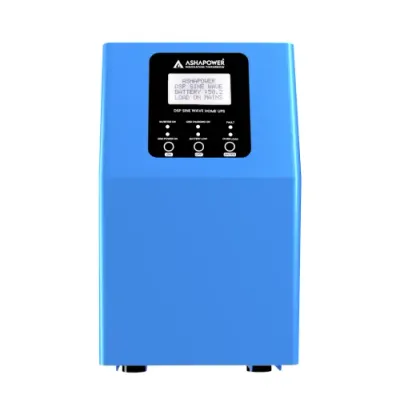

The ASHAPOWER HOME UPS - LANDER 2500-24V is a robust inverter and UPS solution designed to cater to both home and office power needs up to 2000 Watts. This unit supports various appliances including fans, LED lights, computers, and even a low HP induction motor pump when paired with 24V X 200 Ah batteries. It boasts a highly efficient pure copper transformer and utilizes advanced Pure DSP sine wave inverter technology, ensuring superior performance with reduced energy consumption. Notably, the inverter can be upgraded with the ASHAPOWER Solar MPPT Charge Controller, allowing it to be used as a solar inverter. It includes features like battery reverse polarity protection and optional overcharge protection. The system is user-friendly with features such as a 4-way terminal block, 4 line LC display, and zero standby grid power consumption at idle, ensuring efficient and reliable power management.
ASHAPOWER HOME UPS - LANDER 2500-24V is a Premium Quality High power INVERTER / UPS for your home / office having a connected load of 2000 Watts. It can be loaded with Fans, LED lights, Iron box, Computer, normal Washing Machine, Inverter fridge, TV, Laser printer, and a low HP induction motor pump when used with 24V X 200 Ah batteries. It can be easily converted to a solar inverter using ASHAPOWER Solar MPPT Charge controller (SMU). A highly Efficient Pure Copper Transformer with high grade lamination, Smart Pure DSP sine wave inverter technology, high performance with low energy consumption and easy customer control over system functions makes it unique in its class.
- Pure Copper Transformer with High Grade Lamination
- No Load DC Current Less than 0.7A +/- 0.3
- User configurable Grid Charging Current up to 20 Amp
- Customer Control Over AC Mains (grid) Charging ON/OFF
- 70 Micron High Grade PCB
- Battery Charging on Low Grid Voltage
- Large 4 line Multi Functional LCD Display
- Zero Grid Power Consumption on Idle Stage
- High Over Load and Surge Load Handling Capacity
- Unique ZMPT Based Isolated Grid Power Sensing
- Forced Grid to Solar Mode Shifting Facility
- Soft Front Panel all Function Control Switches - No Rocker Switches Behind the Device
- Intelligent Multi Stage Smart Charging (Bulk, Absorption, Float,)
- Best In Class External Surge /Lightning Protection
- Compatible to all Types of Batteries Including LiFePo4 With BMS
- Noise Free Pure DSP Sine Wave Output
- MCB Short Circuit Protection for Grid Power
- Blade Fuse Protection for Internal Components
PHYSICAL
- Connectors : 4 Way Input / Output Terminal block
- Net Weight (Kgs) / Gross Weight (Kgs : 23.5 Kgs / 24.5 Kg
- Dimensions – L x W x H (cm) : 44 x 20 x 34
- Display : 4 line LC Display
SPECIAL FEATURES
- Battery Reverse Polarity Protection : OPTIONAL
- Over Charge Protection : YES
- Standby grid Power Consumption : Zero at idle stage
OUTPUT
- Nominal Battery Voltage : 24V DC
- Operating temperature : - 20 degree to 65 degree C
- Storage temperature : -30 degree to 80 degree C
- No load battery Power Consumption : 0.7AMP + - 0.3
- Maximum grid battery charging current : 4 AMP TO 20AMP
- Humidity : 0 to 90% RH (No dew)
