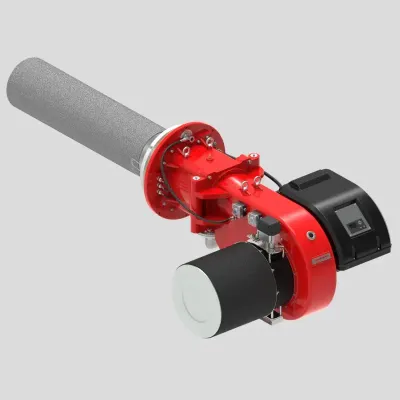

Raadman - Model RPB-M-265/PM - Premixed Burner for Efficient Combustion Control
Heat Rated Output : 650-2600 / 559-2237 (kW) / (Mcal/h). NOx Class: Ultra Low Nox.
Most popular related searches
electric power
electrical power
gas line
low-NOx
electric motor
combustion controller
burner
clean combustion
combustion control
combustion burner
- Technical Data : Value : Unit
- Heat Rated Output : 650-2600 / 559-2237 : (kW) / (Mcal/h)
- NOx Class : Ultra Low Nox
- Turn Down Ratio : 1:4
- G20 Gas Rated Output : 650-2600 : kW
- G20 Gas Flow Rate : 65-260 : m3/h
- G25 Gas Rated Output : 650-2600 : kW
- G25 Gas Flow Rate : 75-302 : m3/h
- LPG Rated Output : kW
- LPG Gas Flow Rate : m3/h
- Light Oil Rated Output : kW
- Light Oil Flow Rate : kg/h
- Heavy Oil Rated Output : kW
- Heavy Oil Flow Rate : kg/h
- Gas Line Pressure (Low Pressure) : mbar
- Gas Line Pressure (High Pressure Type) : bar
- Input Gas Pipe Size (Low Pressure) : DN65 : —
- Input Gas Pipe Size (High Pressure) : —
- Electric Power Supply Phase : 3 : ph
- Electric Power Supply Frequency : 50 : Hz
- Electric Power Supply Voltage : 380-400 : V
- Fan Electrical Motor Power : 7.5 : kW
- Fan Motor Speed : 2850 : rpm
- Pump Model
- Pump Motor Power : kW
- Pump Motor Speed : rpm
- Gas Operation Mode
- Oil Operation Mode
- Centrifugal Fan : 315x104x38 : mm
- IP (With reference to ISIRI 2868) : 43
- Total Dimension : 2585x1180x805 : mm
- Weight : ~250 : Kg
