Zeecos - Model RW -Premixed Radiant Wall Burner
FromZeeco, Inc.

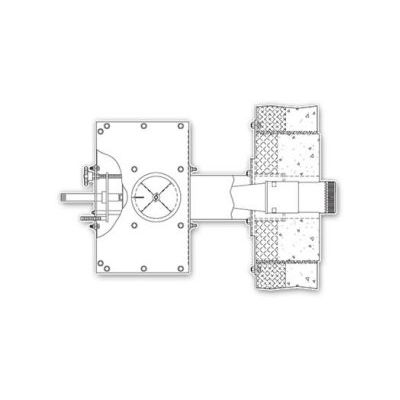

The Zeeco RW burner is a premixed radiant wall burner.
Most popular related searches
- Stable flame over a wide range of conditions
- Turndown of 3:1 or greater for most cases
- Reduced flashback
- Long service life
- Operations with a wide range of fuels
- 304 Stainless Steel spun venture / mixer
- 310 Stainless Steel (Type HK) gas tip
- Burner Model: RW Radiant Wall Burner
- Fuels: Gas Only
- Description: Premixed radiant wall burner
- NOx Reduction Method: None
- Predicted NOx Emissions Range (Natural Draft): 35 ppmv to 80 ppmv
- Combustion Air Induction: Natural & Induced Draft
- Mounting Options: Side-fired
- Natural Draft Heat Release Range: 0.25 MM to 1.8 MM Btu/hr [0.073 to 0.527 MW]
- Turndown: 3:1
- Typical Excess Air Range: 10% to 15%
