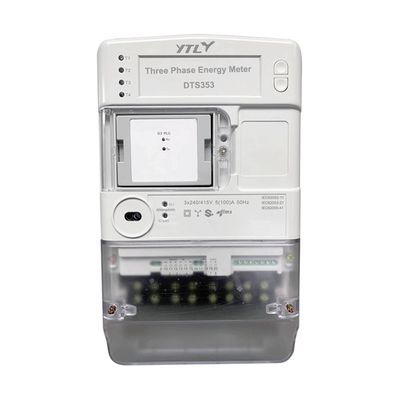

YTL - prepaid meter 3*240(415)V Split Type ThreePhase 4 Module Electrical Meter PLC/RF/GPRS modem Nigeria standards
It is three phase four wire prepayment keypad meter with multi-functions, which measure forward and reverse power, total active power,remain credit and consumption credit etc. Inner meter use credit to calculate for managing well.Meanwhile, the prepayment meter has many communication options like RS485 ,RF, G3 PLC and GPRS communication. This meter must work with IHD together.
type 3-phase 4-wire:Direct type
Accuracy class 1.0 (or better)-active energy/2.0-Reactive Energy
Voltage 3*240/415VAC
Frequency 50Hz
Ib/Imax Direct type: 5/100A;
Min Starting Current Class 1:40mA/Class 2: 50mA
Over-voltage rating Withstand 420VAC for 48 hours
Measurement Each phase and neutral current measurement
Alarm PF;voltage dip/Low voltage;Temperature near terminal block
Tamper inputs Meter cover open;Terminal cover open;Comms module cover open;Strong magnetic field tamper
Communications RS485 (always present)
IR (always present)
Plug-in module:
PLC (G3)
GPRS
LoRa
Protocol: DLMS
Tariff Multi tariff
Maximum demand Configurable integration period-with auto reset on the 1st of every month.Manual reset must also be possible via secure short code method.MD to be part of scroll display.
Load management Support second configurable load limit threshold that becomes active during configurable periods
Standards compliance IEC62052-11
IEC62053-21
IEC62056-46
IEC62056-61
IEC62053-61
