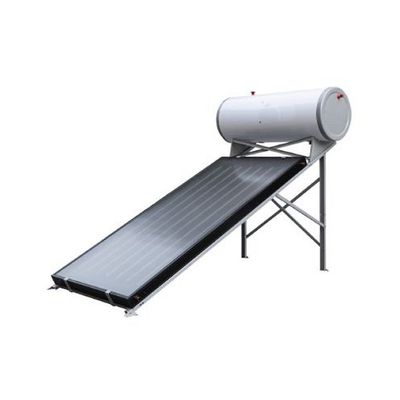

EA-STRONG - Model SWH -Pressurized Flat Panel Solar Water Heater

Water Tank

• Material of Inner Tank : 1.2mm thickness SUS304-2B food grade type Diameter: 360mm
• Material of outer Tank : 0.41mm thickness Stainless steel Diameter: 460mm
• Thick insulation : Polyurethane foam(Bayer,Germany), 50mm thickness, density: 35kg/m3
• Heat Preservation Period : 72 Hours
• Welding Method : Argon Arc Welding

Flat Plate

• Model NO. : EA-FPC
• Dimension L*W*T (mm) : 2000*1000*100
• Cross Area (M2) : 2
• Efficiency Area (M2) : 1.82
• Gross Weight of Collector(KG) : 55±3
• Transparent Cover
• Number of Cover (pc) : 1
• Dimension L*W (mm) : 1975*975
• Cover Material : Float Glass/Low-iron Glass
• Cover Thickness (mm) : 4
• Cover Transmission : 89%-91.4%
• Absorber
• Dimension L*W (mm) : 1840*956
• Material : Red copper
• Surface Treatment : Blue Titanium
• Construction Type : Fin and Tube (Ultrasonic Welding)
• Header Material : Copper TP2
• Header Tube Size (mm) : Φ25*1060*0.8 2 pcs
• Riser Tube Material : Copper TP2
• Riser Tube Size : Φ10*1886*0.6 8 pcs
• Fill Capacity : 1.8L Including Header Pipe
• Thermal Insulation
• Insulation Material : 60K * 50mm Rock Wool
• Insulation Thickness : Polyurethane (side)
• Conductivity (W/mK) : ? 0.032 under 75?
• Casing
• Frame Material : Aluminum Alloy
• Frame Color : Silver Color
• Back Plate : 0.5 mm Galvanized Steel
• Max Operation Temperature : 200?
• Maximum Pressure (Mpa) : 1.4
• Sealing Material : EPDM
• Limitation of Operation
• Max. Working Temperature : 120?
• Max. Working Pressure : 1.2 Mpa
• Recommended Circulation Flow : Propylene Glycol&water mixture
• Resistance to freezing : ? -40?

Frame

• Material : Stainless Steel Thickness: 1.2mm
• Angle : 38°
• Bolts & Nuts : Stainless Steel

Others

• Optional Parts : MG Rod (include), T/P Valve (include)
• Hot water outlet:3/4" external thread down position, material with SS304
• Cold water inlet: 3/4" upper side position, material with SS304
