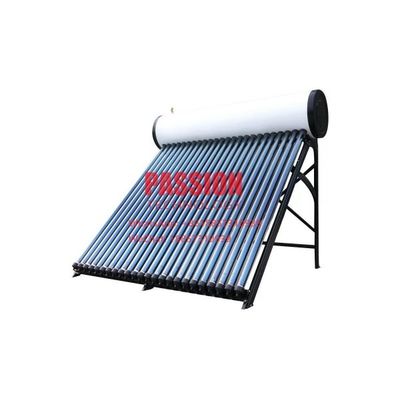

PASSION/OEM - Model 300L -Pressurized Solar Water Heater
Material of out tank: 0.4mm thickness color steel/ fluorine carbon steel. Material of inner tank: Food grade 1.2mm thickness ,SUS304-2B stainless steel. Tank insulating layer: 55mm 45kg/m³ high-density polyurethane foamed. Inlet and outlet hole: Male G 1/2, 3/4. Max pressure: 0.6Mpa. Solar collector tube: 3.3 Borosilicate glass with N/Al coating. Thickness of glass tube: 1.6mm. Vacuum tube tightness: P≤0.005 Pa. Absorption: as=0.93-0.96(AM1.5). Emission ratio: εh=0.04-0.06(80C±5C). Idle sunning property parameters: Y=220~260m2.C/K. Average heat loss coefficient: ULT=0.6~0.7W/(m2.C). Bracket: 1.5mm thickness Galvanized Steel. Structure of tank: 5 holes for air vent,water inlet and outlet,electric heater,Mag Rod. Welding: Argon arc welding. Fastening pieces: Made of stainless steel screw. Absorber area: 2.125 m². Tube quantity: 30tubes, 58x1,800mm with heat pipe. Tank capacity: 300L.
- Adopts the best conduction performance metal- heat pipe (copper).
- Can be used all year round in the cold climate.
- High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized water tank rapidly.
- The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa.
- No water in the tube, one tube broken don`t influence the system working.
- The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage.
- Dual-purpose brackets for both flat and inclined roof.
- The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out.
- The pressure of hot water is pressure of tap water directly ,you can enjoy more comfortable shower.
- Hot water that we use flow in copper coil without transferring in tank directly ,so the water is more clean and healthy.
- There is no need to wait , you can enjoy instant hot water at any time .
- It is suitable for some area special with bad water quality such as hard water ,impurity water etc.We only need use high quality water in tank as a thermal source,refresh it during some time in interval.This will increase vacuum tube heat efficiency and in ease whole system life performance.
- Can be used all year round in the cold climate.
- Simple structure, easy to assembly and install, diffuse flat plate reflector can be assembled easily with its module structure.
- Lead-time:7-15 working days after receiving payment.
- Payment Term:T/T, L/C, Western Union.
- Warranty:5 years for the full system, 15 years for the vacuum tube,and 1year for accessories.
- Trade Term: FOB, CFR and CIF.
