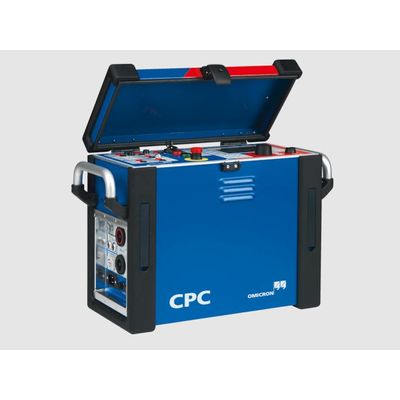

Model CPC 100 - Primary Injection Test System

SHARE
The patented CPC 100 primary injection test system replaces several individual testing devices. This reduces the costs for training and transport, and cuts down testing time. Therefore, the CPC 100 is the ideal test set for substation asset commissioning and maintenance. You can operate the CPC 100 via the integrated front panel, or by using the Primary Test ManagerTM (PTM) software on your laptop.
Most popular related searches
gas insulated switchgear
dry-type transformer
power testing system
current voltage transformer
current transformer
circuit breaker
power testing
power test
substation commissioning
voltage test transformer

High level of safety

To protect you and your equipment, the CPC 100 fulfills the highest safety requirements when performing electrical tests according to IEEE and IEC standards.

Saves you time

The CPC 100 provides you with automated testing procedures and reporting to help you to work quickly and more efficiently.

Compact and lightweight

The compact, lightweight design (29 kg / 64 lbs) makes the CPC 100 easy for one person to transport and ideal for on-site testing in areas with limited space.

Powerful device

The powerful testing device provides up to 800 A or 2 kV (2 kA or 12 kV/ 15kV with boosters) with up to 5 kVA over a frequency range of 15 Hz to 400 Hz or 400 ADC.

Variable frequency

CPC 100 uses test frequencies different from the mains frequency offering an effective suppression of mains-related interference. Thus you obtain very accurate results even in noisy environments.

The CPC Sync feature `provides the opportunity to synchronize up to three CPC100 testing systems. It can be used as a mobile and scalable HV source for on-site induced voltage tests on dry-type transformers (DTT) and gas-insulated switchgears.

  • Up to 800 A or 2000 V with up to 5 kVA over a frequency range of 15 Hz - 400 Hz or 400 A DC
  • Excellent interference suppression facilitates measurement of small signals
  • Easy to transport (just 29 kg) – ideal for on-site testing
  • Testing templates, automatically generated testing procedures and test reports
  • Up to 2000 A or 12 kV/ 15kV through use of current or voltage amplifiers
  • Current transformers (CT)
  • Voltage transformers (VT)
  • Transformers
  • Rotating machines
  • Grounding systems
  • Lines and cables
  • Circuit breakers
