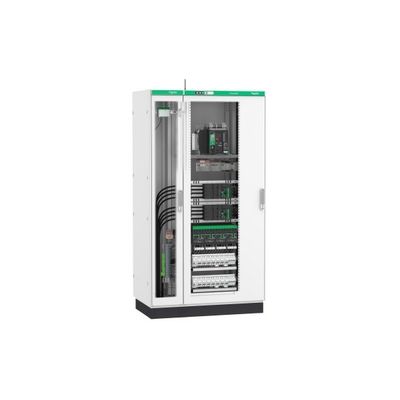

PrismaSeT - Model P Active - Digitally Connected Switchboards for Power Distribution up to 4000A
Part of Set Series: PrismaSeT Active is the newest generation of low-voltage switchboards, natively cloud connected. This revolutionary approach lets panel builders and electrical contractors give a voice to power distribution across commericial buildings. Commissioning is made faster, before smart alarms help optimize maintenance and improve uptime.
-
Most popular related searches
Discover PrismaSeT Active
Simple. Connected. Revolutionary.
- PrismaSeT Active is the newest generation of low-voltage switchboards featuring native connectivity to the cloud.
- This revolutionary approach lets any customer, in any commercial building, give their electrical distribution a voice.
- Fast commissioning makes installs more efficient, and real-time smart alarms optimize maintenance and improve uptime.

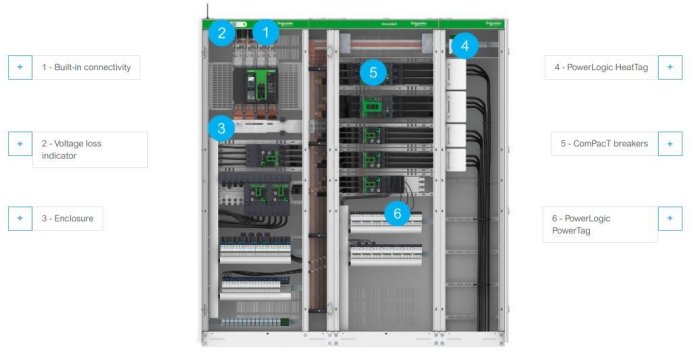

PrismaSeT P Active Features
- Cubicles for electrical switchboards up to 4000 A
- High-performance distribution systems with Linergy busbars and quick connectors
- Complete set of tested and IEC 61439-1&2 compliant modular functional units and low-voltage electrical distribution switchboards
Specification:
- Low-voltage switchboards, Icw 100kA rms/1s, IP30, IP31, IP55, IK10
- Distribution system: horizontal and vertical busbars in a lateral compartment or at the rear of the cubicles
- Cubicles with plain or glass door tested up to 2.5g according to the IEC 60068-3-3 standard ensure that the switchboard will keep on operating as intended, even during severe earthquake conditions (up to 7 on the Richter scale)
- Metal frames and panels: steel metal sheet with cataphoresis treatment with hot-polymerized polyester epoxy powder coating (color RAL9003)
Dimensions:
- Height: 2000 mm
- Width – 4 options: 800 mm (for functional units with vertical busbars), 650 mm (for functional units), 400 mm (for functional units or cable ducts), 300 mm (for cable ducts)
- Depth – 2 options: 400 mm, 600 mm
