Preen - Model AFV-S Series - Programmable AC Power Source
The AFV-S Series is a versatile programmable AC power source designed to meet diverse testing needs across various applications. Available in four output levels: 600VA, 1250VA, 2500VA, and 5000VA, this series offers clean power delivery with total harmonic distortion under 0.3% at 50Hz and 60Hz. Its wide output voltage range of 0-310V and frequency range of 40-500Hz make it suitable for testing home appliances, LED lighting, power connectors, and automation systems. The AFV-S Series features a 5-inch touch panel and rotary knob for easy parameter adjustments and settings. It supports multiple communication interfaces, including RS232, RS485, and optional Ethernet and USB. With the ability to deliver peak currents up to four times its RMS current, remote sensing for voltage stability, and extensive measurement capabilities such as RMS voltage, frequency, current, and power factors, the AFV-S Series is an excellent tool for complex power line simulations and inrush current testing. Its compact 2U/4U size makes it a practical choice for both lab and manufacturing environments.AFV-S series is a programmable AC power source with precise measurement capability. This compact product comes in four output power levels: 600VA, 1250VA, 2500VA and 5000VA, which provides clean power with low harmonic distortion. It is ideal for home appliances, power connector, LED lighting, automation testing in manufacturing and product testing in laboratory.
The AFV-S series can display 4 shortcuts of 20 memory sets, and the voltage and frequency setting of each memory sets can be clearly read. Users can quickly set and view the parameters via 5 inches touch panel or rotary knob, which provides an easy operation and measurement display. The AFV-S series is equipped with communication interfaces of RS232, RS485, Ethernet(opt.), Analog(opt.), and USB(opt.)

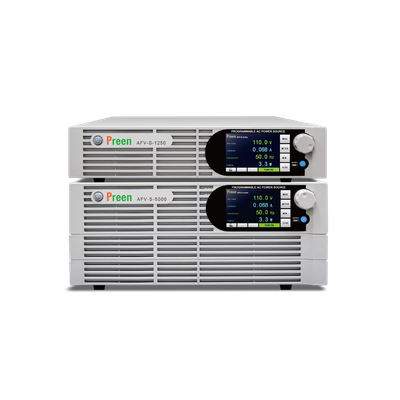

2U/4U
Compact Sizes
2U : 600VA / 1250VA / 2500VA
4U : 500VA
4 times
High Inrush Current
Capable of delivering up to 4 times of peak current from RMS current
≦0.3%
Low THD
Total Harmonic Distortion is under 0.3 % when output is at 50Hz, 60Hz
0-310V
Wide Output
Wide output Voltage and Frequency ranges
4
Shortcuts
One user-assigned shortcut from 20 memory sets and three fixed shortcut from first three memory sets
20
Memory Sets
Users can set the voltage and frequency in memory sets according to their needs and the name of memory groups can be defined for great convenience

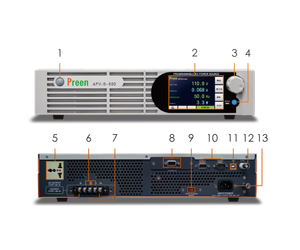

- Power Switch
- Touch Screen HMI
- Rotary Knob
- Output / Reset
- AC Output Socket
- Output Terminals
- Remote Sense
- RS-232/RS-485
- Input Voltage Selector
- Input Voltage Selector
- USB Interface(for firmware update)
- Sync. Signal I/O
- Input Socket*
