Program Thermal Tech (Luoyang) Co., Ltd.

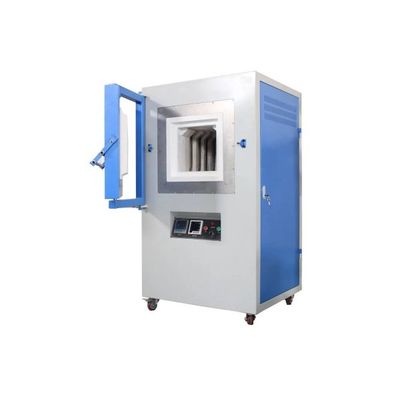

ProgramTherm - Model PM L36/17 -Industrial Muffle Furnace 1200C-1700C (16?x12?x12?, 36L)
Industrial muffle furnace PM L36/17 features bigger volume, floor standing type, max temperature up to 1700C. This kind of muffle furnace is mainly designed for heat treatments on batch products / samples for industrial using. Programtherm is a leading industrial muffle furnace manufacturer in China, option designs and customizations.
Most popular related searches
Industrial Muffle Furnace features bigger volume, normally build in floor standing type, high alumina ceramic fiber insulated with powerful heaters, enables samples to be heat-treated at temperatures exceeding 1700°C (3092°F). Industrial muffle furnace is mainly designed for heat treatments on batch products / samples for industrial using.
- Tmax 1700 °C
- Dual steel structure with fan cooling for low surface temperature
- Fiber-insulated chamber for maximum temperature stability and uniformity
- Powerful 1850# MoSi2 rods heating from two sides evenly give an improved temperature gradient
- Programmable Digital Shimaden Temperature Controller
- Long life type B thermocouple
- CE certified, standard
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
- Model No. : PM L36/17
- Chamber size (DxWxH) :400x300x300mm /16x12x12″
- Capacity: 36 Liters
- Power supply :
- 13KW
- AC380-415V, 50/60Hz, three phases
- Working temperature :
- Tmax 1700°C (3092°F)
- Continuously 1600°C (2912°F)
- Temperature uniformity +/- 5C
- Temperature controller :
- Yudian PID controller
- Auto-tune function
- Programmable 30 segments
- Temperature accuracy +/- 1°C
- Heating rate : ≤15°C / min
- Heating element : MoSi2 (U shape, 8pcs)
- Thermocouple : B type
- Chamber lining : Mitsubishi Raw Material high alumina 1800# fiber board
- Electronic components : Schneider maker air switch, AC contactor, SSR Relay etc.
- Shipping info : Weight: 360 kgs
- W1140xL950xH1400mm
- Compliance : CE, ISO
- Warranty : One-year limited warranty with lifetime support
