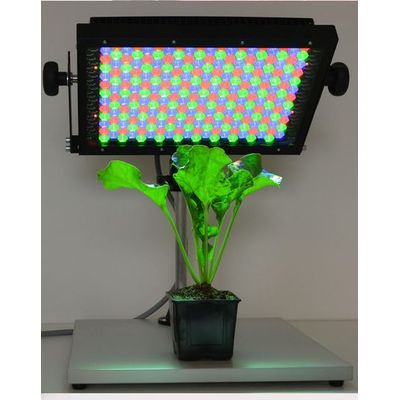

PSI - Model SL 3500 - LED Lights

Both the Light Controller LC 100 and Light Studio software offer the possibility to create user-defined protocols with light/dark phases and precise control over the light mode, intensity and timing. Different LED Lights SL 3500 models vary in the panel size that determines illuminated area and in light color (from UVA to IR).

• High light output up to 3,000 µmol.m^-2.s^-1 at the distance of 20 cm
• Uniform light distribution over the desired area
• Precise intensity control in the range of 1 % to 100 %
• Minimum undesirable heating effects to experimental material
• Hardware or software control of the light regime and intensity
• Different color versions
• Standard colors available: white cold, white warm, blue royal, blue, green red-orange, red
• Tri-color versions available in 20 x 20 cm and 20 x 30 cm sizes
• Long lifetime of LEDs (min. 60,000 hours)

• PPFD: Up to 3,000 µmol.m^-2.s^-1 at the distance of 20 cm
• Panel External Dimension (W x D x H):
Model A: 17.5 x 17.5 x 11 cm (with holder screws: 17.5 x 28 x 11 cm)

Model B and C: 25 x 22.5 x 11 cm (with holder screws: 25 x 33 x 11 cm)

Model D and E: 23.5 x 34.5 x 11 cm (with holder screws: 23.5 x 45 x 11 cm)
• Light Sources:
Light emitting diodes (LEDs): 455 nm, 530 nm, 617 nm, cool white (4,500 - 10,000 K) and others
• Custom-Designed Protocols (Optional):
Variable timing and scripts
• Communication Port:
I2C communication (used for Light Controller LC 100 and Light Studio Controller)
• Standard Accessory:
Stand with a holder
• Power Input:
From 75 to 500 W (depends on the version and LED color)
• Electrical:
90-240 V
• Warranty:
1 year parts and labor
