AMWEI - Model 110V/220V 260C 24x15x2.5mm -PTC Ceramic Thermistors Heater Rectangular Clamp Contact

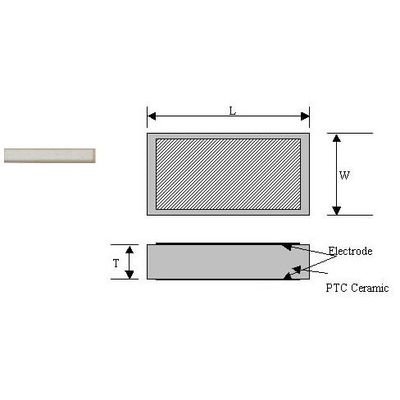

Self-regulating PTC Heater Chip, Rectangular Dimension 24X15X2.5mm, Vmax 265V, Surface Temperature 260C@220V, Clamp contacting. Applied for 230V/120V heating, can be used in beauty products tool equipment appliances, such as hair curlers, fan heaters, coffee machines, glue guns, etc. More details in https://amwei.com/ptc-heater-110v-220v-260c-24x15mm-ceramic-rectangular/Rated voltage (RMS) : 220 V
Maximum operating voltage Vmax: 265 V
Breakdown voltage >350V
PTC Thermistor Surface Temperature: 260C±10C
Reference temperature (Switch temperature) Tref: 245C
Applied for 220V/120V heating, can be used in beauty products tool equipment appliances, such as hair curlers, fan heaters, coffee machines, glue guns, etc. Suitable for clamp contacting.
Safe through temperature limiting characteristics.
No danger of fires since there are no glowing parts.
Dynamic, self regulating, and therefore energy efficient.
No excess temperature protection required.
Compact design.
Long service life.
PTC Heater is ceramic barium titanate PTC thermistor used for self-regulation constant heating, no glowing parts, no overheating, energy efficient, compact design, long service life.
PTC thermistor positive resistance vs. temperature R/T characteristic means that electric power consumed is automatically adapted to the ambient thermal conditions. At an ambient temperature significantly lower than Tref, i.e. with good heat transfer, the PTC thermistor has low resistance and consumes a relatively large amount of power. If the ambient temperature is significantly higher than Tref or heat transfer is restricted, the resistance of the PTC thermistor rises rapidly and power consumption is limited to a very low value.
Thanks to self-regulation properties, heating devices based on PTC thermistor technology can generally dispense with control and regulating components as well as with over-temperature protection, PTC thermistor heating elements are used wherever measurement and regulating equipment as well as heating devices must be housed in tight confines. There are no glowing parts, because the maximum surface temperature is limited by the R/T curve.
More details in PTC Thermistors Heaters
