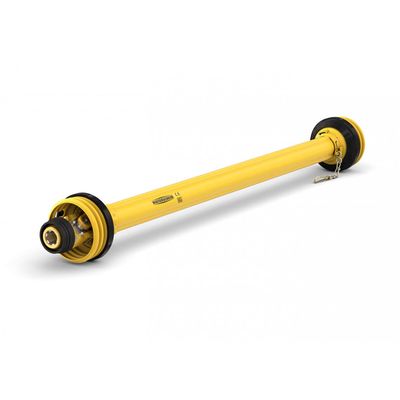

Walterscheid - Model 1800065 -PTO Driveshaft W 2400

SHARE

Standard drive shaft with connection forks. Product advantages: The W series PTO drive shaft offers tried-and-tested Walterscheid technology and is perfectly designed to suit all application areas. The excellent benefits of this Walterscheid PTO drive shaft is a long service life, ease of use, and great safety properties. For decades, Walterscheid has been a guarantee of the highest quality. The W series are optimally dimensioned for drivetrain tasks, from simple to complex ones. It impresses users with its robust design and high reliability for daily use. Another advantage: All of the components in the PTO drive shaft W series can be replaced really easily to increase ease of use or if spare parts are needed.

Most popular related searches
drive train
The scope of delivery includes a complete drive shaft size W2400 with connection forks (profile 1 3/8" (6)), guard, retaining chain(s), operating and assembly instructions incl. declaration of conformity.
The standard design is suitable for the use of drive shafts with parallel axes. Depending on the application, it is recommended that a simple joint can be operated up to an angle of max. 25°. A constant angle during continuous operation of max. 15° should not be exceeded.
All components are designed specifically for the device and performance and it is not allowed to exchange for components other than those prescribed by Walterscheid. Damaged or missing parts can only replace with original Walterscheid parts and retrofit them in accordance with regulations and after consultation with Walterscheid.
The assignment, assembly and use of this model requires a detailed preliminary examination by qualified personnel. It is imperative to check the existing facilities and all of the machinery and equipment for their suitability for attachment. In particular, the characteristic values (e.g. vertical and pulling loads or torques) and the geometries (e.g. dimensions, screw hole patterns, free spaces) must be observed. Depending on the existing equipment of the machine, this can result in the use or purchase of additional components. The content of operating instructions must be observed.
