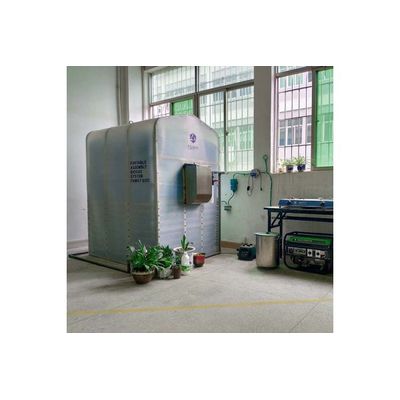

PUXIN - Model 3.4m3 -Portable Assembly Biogas System
PUXIN Portable Assembly Biogas System is a Do It Yourself (DIY) Kit BIOGAS SYSTEM for convenient transport and easy assembly. It comes in cardboard boxes. It is surface mounted, there is no need for digging or heavy construction. It can be assembled within 90 minutes by the client itself without any training. High efficient biogas system with hollow sunlight sheet green house and pad for insulation and heating.
Very Safe.
Portable biogas digester is setup on the ground, this design avoid potential risk falling into pool for human & animal by accident . When discharge material, no deed go inside the digester (traditional design need go inside digesterpool),
Biogas storage & production bag is made of macromolecular structure poly layer design, There is no leaking risk.
Easy to Use&Maintan.
The whole design like a sun room, to make gas production at a peak level.
Easy operation, users can operate system by himself, generally no need to clean digester.
Easy To Install.
Installation is simple, no need of engineering facilities. No need special tool, user can easily do installation.
The biogas digester is removable, portable, and it can be combined with one another together.
How it work?
Makes you treat your organic waste locally, use the biogas for cooking and electricity, feed your garden with nutritious liquid fertilizer, save on your energy bill and garbage disposal fee!
The ultimate solution for families, restaurants , hotels and resorts to treat their organic wastes(food waste, sewage sludge and animal manure etc.)
Waste Capacity:
- Raw material Maximum (Kg/d)
- Food waste 25
- Pig manure 45
- Cow manure 60
- Chicken manure 26
- Human manure 32
- Vegetable 65
- Output: Biogas and Clean natural liquid fertilizer
- Minimum Ambient Temperature: 10°C
- Power of biogas booster pump: 20 w
- Nominal gas pressure: 0.12bar
- Gas Flow: ≥26 L/min
- Size of filter (desulfurizer ): 1L
- Weight (empty): 150 kg
- Dimensions: 195H/156L/120W cm
- Space of green house: 3.4m3
- Volume of digester: 1.7m3
- Volume of gas storage: 1.3m3
- Biogas production: max 2m3/d
- Biogas for cooking: over 4 hours
