Galaxy Energy - Model GE4 601 -PV-Connector
Gold plated. As a couple or as a single plug. The precision and use of high quality components allowed Galaxy Energy a manufacturing of an extremely high quality connectors with gold-plated contacts. Therefore Galaxy Energy offers a product warranty of 5 years. In conjunction with our Highperformance modules and related performance guarantee of 25 Years. This is necessary to provide a safe investment over Decades.
Most popular related searches
- Resistance of the connector ≤ 0,335mΩ
- Cable 4mm² - 6mm²

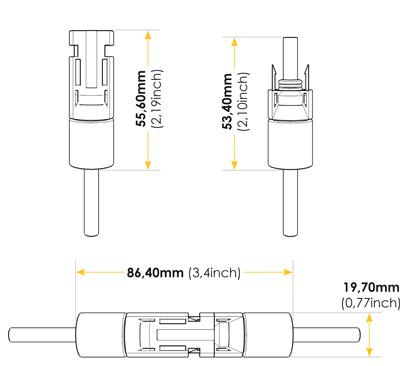

- length 86,40 mm
- width 19,70 mm
- 5 year product warranty
Basic Specifications
- The connectors are build to last long and are UV resistant
- A stable and automatic lock system allows easy opening and closing
- The connectors are fuly Amonia resistant
Electrical Data
- Voltage
- V 1000 V DC
- Current: A 25 A
- contact resistance: mΩ ≤ 0,335 mΩ
- safety class: II
Mechanical Properties
- temperature range: °C -40°C to 85°C
- Cabel mm² 4mm² to 6mm² IP65
- Peel force: 360 Newton
Material Properties
- insulation material: PC, black

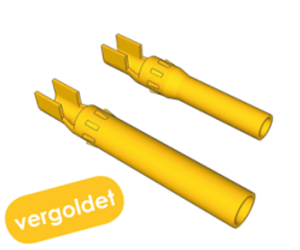

- contact material: copper, gold plated
- fire class: UL64-VO
- safety class: II

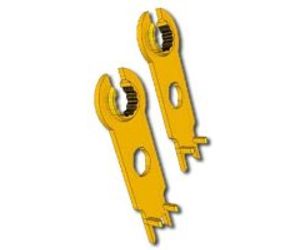

Mounting tool-set for GE4 - 601
- For tightening and loosening of the cable fi tting
- To release the locking of the connector
- For locking during tightening of the screw
