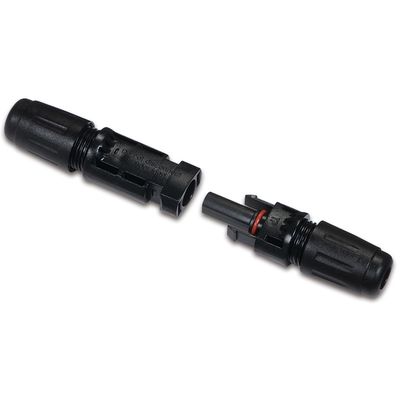

Tapollop - Model TPCB-4P -PV Connector for Junction Box Assembly
Characterized for anti-aging and anti-ultraviolet function. Qualified to be used under the harsh environment. Interlocking system for connecting and MC4 equivalent. Designed for junction box assembly. Protection degree: IP67.
Most popular related searches
Specification Material
Box
- Main body:PPO
- Gland nuts:PA66-GF
- Gland sealing:TPV,Silicone
- Contact terminal:Tin plated copper alloy
- Connector side
- Environmental/Reliability
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+125°C
- Pollution degree:3
- Degree of protection:IP67
Electrical Specification
- Rated voltage:1500VDC EM/1000V UL
- Rated current:Up to 35A,
- 2.5?m? - 6.0 m?
- Application class:Class A
- Overvoltage category:III
- Rated impulse voltage:8 kV
- Certification:TUV Rheinland
- EN62852:2015, R50465271
- UL6703:2014 US72201731 01
Others
- Contact method:Snap-in
