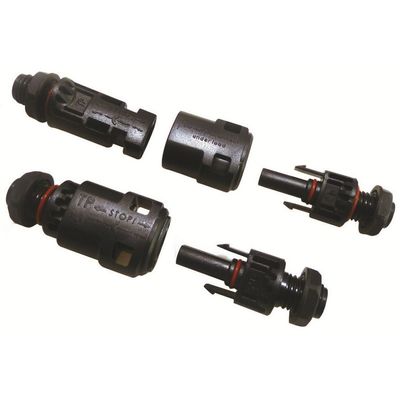

TapollopModel TPCB-6P - PV Connector for Panel Type and PV System Connecting

SHARE

Characterized for anti-aging and anti-ultraviolet function. Qualified to be used under the harsh environment. Interlocking system for connecting, release connection with tooling and MC4 equivalent. Designed for panel type installation and connection. Protection degree: IP68.

Most popular related searches

Specification Material

Box

  • Main body:PPO
  • nuts:PA66-GF
  • Wall sealing:Silicone
  • Contact terminal:Tin plated copper alloy
  • Connector side
  • Environmental/Reliability
  • Operating temp. range:-40°C to +85°C
  • Upper limit temp.:+105°C
  • Pollution degree:2
  • Degree of protection:IP68

Electrical Specification

  • Rated voltage:1500VDC EM/1000V UL
  • Rated current:Up to 35A,
  • 2.5?m? - 6.0 m?
  • Application class:Class A
  • Overvoltage category:III
  • Rated impulse voltage:8 kV
  • Certification:TUV Rheinland
  • EN62852:2015, R50465271
  • UL6703:2014 US72201731 01

Others

  • Contact method:Snap-in
