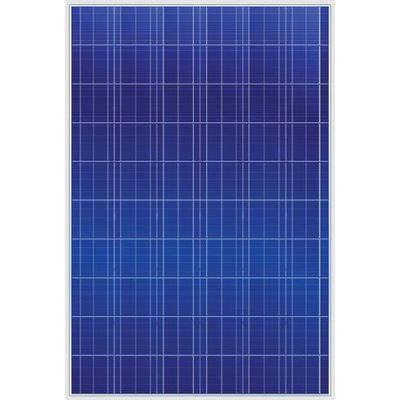

Universal Solar - Model WXS290P7-US - PV Module
Cell Type Multi-Crystalline Silicon, Cell Size 156mm×156mm (6.14×6.14in), No. of cells and connections 72 (6×12), Dimension of module(mm) 1956×992×38mm (77.01×39.06×1.50in), Weight 22.0Kg (48.5Ibs), Power Tolerance +/- 3%.
Electrical Characteristics 4
Model WXS290P7-US
Maximum power at STC(Pm) 290W
PTC 265.67W
Open-circuit voltage(Voc) 45.29V
Short-circuit current(Isc) 8.08A
Voltage at Pmax(Vmp) 37.87V
Current at Pmax(Imp) 7.66A
Limits
Fuse rating 15A
Maximum system voltage 1000VDC (IEC)
Operating temperature -40? to +185?(-40? to +85?)
Temperature and Coefficients
NOCT 45?+/-2?
Temp coefficient of Voc -.313% (± 5%)
Temp coefficient of Isc .046% (± 5%)
Temp coefficient of power -.40% (± 5%)
Output
Type of output terminal IP65 Junction Box
Cable 12AWG PV Wire
Cable lengths 1200mm (47.24in)
Connector MC4
Warranty
Workmanship and Materials 5 Years
90% Power 10 Years
80% Power 25 Years
