Mechatron - Model PV-CLAMP -PV Module
FromMechatron

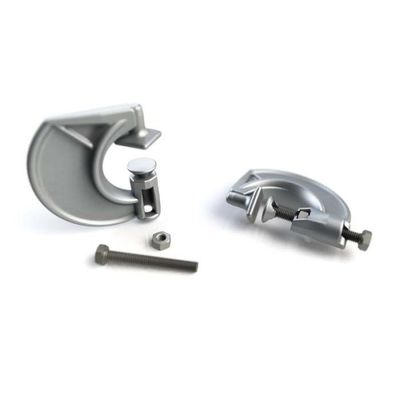

The Photovoltaic(s)".">PV-CLAMP is a device specifically designed for the attachment of Photovoltaic(s)".">PV modules directly onto C shaped profiles. The Photovoltaic(s)".">PV-CLAMP is the most cost effective solution as there is no need for intermediate rails or sub-frames, nor drilling or cutting. Additionally, the required fitting time is significantly less than that of any other fixing solution.
Most popular related searches
- Insert the nut in the socket on the side of the component.
- Insert the screw to the bottom of the component and push while screwing it, until it reaches the nut.
- Apply more force until the barrel neck brakes.
- Continue screwing until the PV module and the supporting profile are pressed firmly between the barrel and the top of the PV-CLAMP.
In this image you can see a typical installation scenario in section view. Two PV modules are placed side by side and are both clamped on a C shaped purlin using a PV-CLAMP.
- C shaped underlying profile
- PV-CLAMP for the first PV module
- Fisrt PV module
- PV-CLAMP for the second PV module
- Second PV module
