Gantner - Model 116 -PV Plant Monitoring String Blox 1000V/1500V

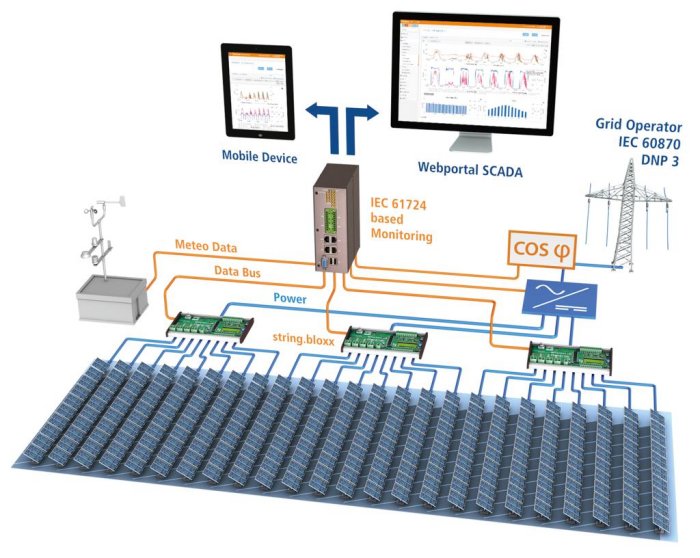

Effective PV Monitoring requires constant, solid and traceable PV Plant monitoring data in order to determine actual performance and fulfil owner/investor expectations. Operators are interested to identify errors and losses in a reliable way to trigger appropriate actions for maximizing energy harvest during the total system lifetime. With the monitoring of PV Module strings, design and production errors will be recognized on the DC side with high resolution down to PV Module level.

• Connection for strings: Up to 32 PV strings
• Analog input for current measurements: 16 channels
• String current: ± 26 A string current (calibrated), ± 416 A summary @60°C
• Analog input channel for voltage measurement: 1 channel, 0-1000 VDC string voltage
• Input channels for temperature: 2 channels, panel and switch cabinet temperature
• Digital inputs: 3 inputs, monitoring of overvoltage protection and main switch
• Integrated LC display: Display of all readings, configuration
• Mounting: DIN rail or wall mounting according to DIN 50022
• Digital output: 1 output, actuation of main switch
• Signal conditioning: Calculated DC Power, linearization, mean value, scaling, alarm
• RS485 fieldbus interface: Up to 115.2 kbps: Modbus-RTU, ASCII (optional OEM protocols)
• Connectivity: Data logger (e. g. Q.reader) and gantner.webportal for worldwide access or other 3rd party applications
• Electromagnetic Compatibility: According to EN 61000-4 and EN 55011
• Power Supply: 10 up to 55 VDC

Input Current

• Max. Number: 16
• Range: ± 26 A
• Accuracy: 0.25 %
• Connection: 0.25 mm2 - 6 mm2 push-in spring-cage connection

Current measurement

• Max.: 416 A
• Connection: M8 bolt connector for cable ring terminals
• Voltage measurement
• Number: 1
• Range: 0-1000 VDC
• Accuracy: 0,2 %
• Connection: 0.25 mm2 - 6 mm2 push-in spring-cage connection

Input Temperature

• Number: 2
• Type: Pt1000, 2- and 4-wire
• Range: -40 till +160°C
• Accuracy: 0.5 %
• Connection: 0.25 mm2 - 1.5 mm2 push-in spring-cage connection
• Digital Inputs
• Number: 3
• Input: State
• Connection: 0.25 mm2 - 1.5 mm2 push-in spring-cage connection

Digital Output

• Number: 1
• Output: State, alarm
• Contact: Relay change
• Load: 30 VDC/1000 mA (ohmic load)
• Connection: 0.25 mm2 - 1.5 mm2 push-in spring-cage connection

Power Supply

• Power supply: 10 up to 55 VDC, overvoltage and overload protection
• Power consumption: approx. 1.5 W (0.4W at 30 seconds sample rate)
• Connection: 0.25 mm2 - 1.5 mm2 push-in spring-cage connection

Communication Interface

• Standard: RS-485, 2-wire
• Data format: 8n1
• Protocols: Modbus-RTU, ASCII: 19.200 bps up to 115.200 bps
• Number of devices on the bus: max. 250
• Connection: 0.25 mm2 - 1.5 mm2 push-in spring-cage connection

Environmental

• Operating temperature: -20°C up to +60°C @ max 384 A current
• Operating temperature: -20°C up to +75°C @ max 192 A current
• Storage temperature: -40°C up to +85°C
• Relative humidity: 5 % up to 95 % at 50°C, non-condensing

Mechanical

• Case: Polycarbonate
• Dimensions (W x H x D): (305 x 128 x 55) mm
• Weight: approx. 600 g
• Mounting: DIN EN-rail or wall mounting
