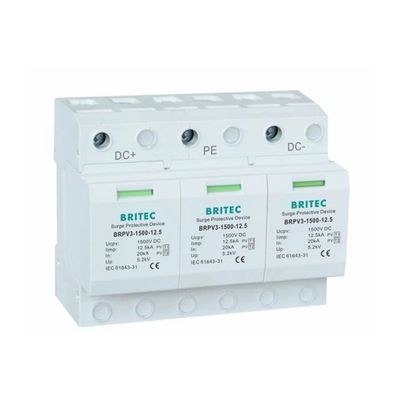

Britec - Model BRPV3-1500-12.5 -PV Surge Protection Type 1 + Type 2

SHARE

Features: High energy varistors. Ucpv 1500V.. Fault display and remote alarm function.  High energy varistors.. The current capacity is 12.5kA with 10/350μs waveform.

Most popular related searches
solar power generation system
surge protection
solar power generation
power generating system
power generation system
solar photovoltaic module
power generation
DC power supply
circuit breaker technology
photovoltaic power generation
  • Mainly used in the solar photovoltaic power generation DC junction box, the generated solar cell photovoltaic module surge or light is protected by lightning, so as to protect the solar photovoltaic module panel.
  • Used for surge protection of electrical components in any other DC circuit.
  • Surge protectors for solar power generation systems
  • It is suitable for surge protection of DC power supply line equipment of solar power generation system.

  • Strong ability of lightning current discharge
  • Modular separation structure, easy operation and maintenance.
  • Remote contact is optional to realize remote monitoring
  • Double heat trip device, temperature control circuit breaker technology.
  • The color of the visual alarm window indicates the working status of the protection.

  • Installed in parallel at the interface of LPZ1 zone and subsequent zones: power controller, power converter, etc.
  • When the surge arrester is installed under the required conditions, it does not require long-term maintenance, but only routine maintenance. If the color of the visible alarm window changes to red (fault) during use, it indicates that the surge protector is damaged and needs to be repaired or replaced.
