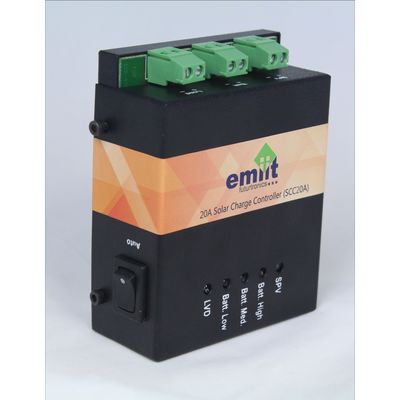

Emiit - Model SCC20A - PWM Solar Charge Controller
FromEmiit
SCC20A:20A Dual 12V/24V Input-output PWM charge controller is equipped with AUTO switch for Dusk to Dawn street light operations.
Most popular related searches
solar charge control
solar charge controller
charge controller
solar charge
PWM solar charge controller
overvoltage protection
solar controller
battery state
street light
overvoltage
- Battery State-of-Charge display with 3 LEDs
- LVD & SPV display LEDs
- Automatic 12/24 V detection
- Integrated temperature compensation
- Over Voltage, reverse polarity & short circuit protection
- Float charge 13.8/27.6 V (25 °C)
- Boost charge 14.2 /28.4 V (25 °C), 2 h
- Activation: battery voltage < 12.3/24.6v
- Temperature compensation
- 25 mV/K at 12 V
- 50 mV/K at 24 V
- Max. own consumption < 4 mA
- Battery type Lead acid (GEL, AGM, flooded)
- Wire cross section Up to 16 mm2
- Deep discharge protection: 10.8/21.6 V
- Reconnect level 12.8/25.6 V
- Overvoltage protection 15.5/31.0 V
- Under voltage protection 10.5/21.0 V
- Max. panel voltage
- 30 V in 12 V system
- 50 V in 24 V system
- (Overvoltage protection by varistor)
- Grounding Positive grounding possible
- Ambient temperature −40 to +50 °C
- Max. height 4,000 m above sea level
