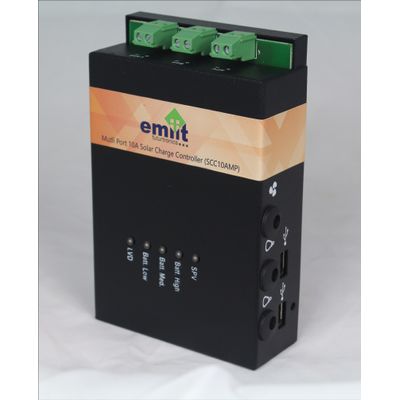

Emiit - Model SCC10AMP - PWM Solar Charge Controllers
FromEmiit
SCC10AMP: The 10A Dual 12V/24V Input-output PWM charge controller is equipped with 2 USB ports and 3 DC ports for connecting DC table fan and DC lamps in homes, schools, community centers and in mobile accommodations.
Most popular related searches
solar charge control
solar charge controller
charge controller
solar charge
PWM solar charge controller
overvoltage protection
solar controller
battery state
overvoltage
- Battery State-of-Charge display with 3 LEDs
- LVD & SPV display LEDs
- Automatic 12/24 V detection
- Integrated temperature compensation
- Over Voltage, reverse polarity & short circuit protection
- Float charge 13.8/27.6 V (25 °C)
- Boost charge 14.2 /28.4 V (25 °C), 2 h
- Activation: battery voltage < 12.3/24.6v
- Temperature compensation
- 25 mV/K at 12 V
- 50 mV/K at 24 V
- Max. own consumption < 4 mA
- Battery type Lead acid (GEL, AGM, flooded)
- Wire cross section Up to 16 mm2
- Deep discharge protection: 10.8/21.6 V
- Reconnect level 12.8/25.6 V
- Overvoltage protection 15.5/31.0 V
- Under voltage protection 10.5/21.0 V
- Max. panel voltage
- 30 V in 12 V system
- 50 V in 24 V system
- (Overvoltage protection by varistor)
- Grounding Positive grounding possible
- Ambient temperature −40 to +50 °C
- Max. height 4,000 m above sea level
