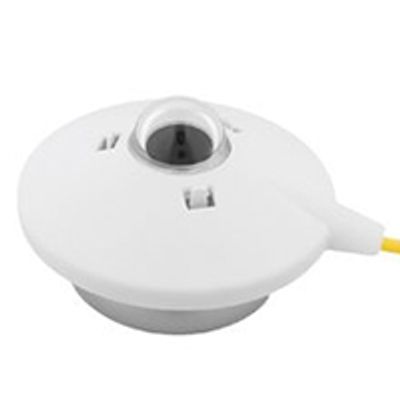

Felix - Pyranometer
The pyranometer is an instrument for measuring the solar irradiance. The thermopile sensor construction measures the solar energy that is received from the total solar spectrum and the whole hemisphere (180 degrees field of view). The output is expressed in Watts per meter square. The pyranometer is designed for continuous indoor and outdoor use.
Most popular related searches
pyranometer
solar energy
solar irradiance monitoring
solar irradiance sensor
watt meter
pyranometer instrument
solar receiver
sensor pyranometer
- Spectral range: 310 to 2800 nm
- Sensitivity: 5 to 20 µV/W/m²
- Response time: 18 s
- Zero offset: A ± 15 W/m²
- Zero offset: B ± 5 W/m²
- Directional error: (up to 80 ° with 1000 W/m² beam) < 20 W/m²
- Temperature dependence of sensitivity: (-10 ºC to +40 ºC) ± 5 %
- Operating temperature range: -40 °C to +80 °C
- Maximum solar irradiance: 2000 W/m²
