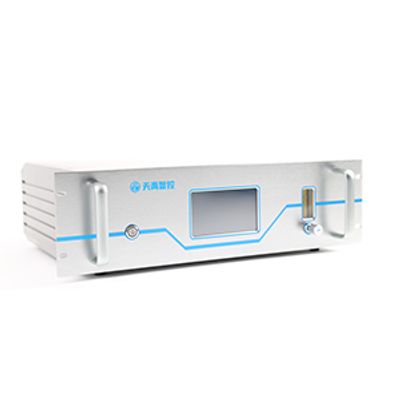

Tianyu - Model TY-6332 & TY-6330 -Pyrolysis Six Gas Analyzer (CH4/CO2/CO/O2/H2/CxHy)

FromWuhan Tianyu Intelligent Control Technology Co., Ltd.

SHARE

Pyrolysis six Gas Analyzer CH4/CO2/CO/O2/H2/CxHy TY-6332 can measure CH4,CO2,CO,CnHm,O2 and H2 at the same time in one unit, and calculating heating value in MJ/M3 or Kcal/m3.

Most popular related searches

pyrolysis analyzer

syngas analyzer

syngas production

gasification system

coal gasification system

Rack type 3U size
Using 5`` TFT LCD touch screen
Measurement value display/real-time curve display
Calibration menu and alarm setting with password protection
One set back to factory setting

Measurement: CO, CO2, CH4, CnHm, O2, H2 and gas calorific value calculation
Calculation: High Heating Value or Low Heating Value in MJ/m3 or kcal/m3
Technology:

CO, CO2, CH4, CnHm: proprietary dual beam NDIR detectors
O2: industrial electrochemical cell
H2: MEMS thermal conductivity detector

Ranges

CO/ CO2:/CH4 / H2: 0-100%, CnHm : 0-10%, O2: 0-25%
Other ranges customizable on request without price increase

Resolution: 0,01%
Accuracy: CO/CO2/CnHm/CH4:±2%FS;H2/O2:±3%FS
Repeatability: ≤ 1%
Gas conditions:

Flow:0.7L-1.2/min, internal gas sampling pump, external flow meter with needle valve
Pressure:2kPa≤ inlet pressure≤ 50kPa
Quality: No dust, moisture, tar (external safety filter and optional gas washing unit)

Operating conditions: Tamb : -5°C to 50°C / Pamb : 86 to 108 kPa / RH : 0-90% non-condensing
Response time (T90): ≤ 15 sec (NDIR)
Communication interface: 4-20mA; RS232/RS485
Power supply: External 11V-220 VAC-50Hz
Dimensions and weight

Gas analysis system :1800(L) x 800 (H) x 800 (W) mm /200-250kg
Water bubble washing system: 1200 (L) x 800 (H) x 300 (W) mm / 75-100kg

coal chemical process
steel making process as blast furnace, converter, coking, direct iron
ore smelting reduction
syngas production from Biomass and coal gas gasification processes
