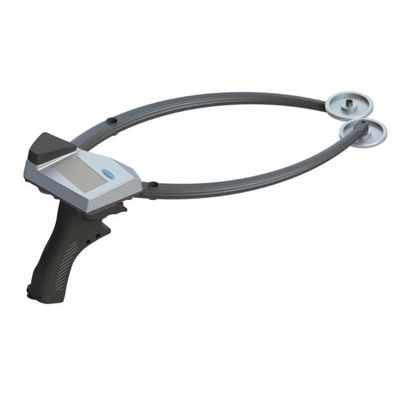

Racal - Model II BT -Lightweight Caliper
Racal II BT is a lightweight caliper which ensures fast and precise measurement by one-hand operation. Spring loaded measuring force avoids user to measure too “hard”. Narrow rollers and sturdy construction give accurate and a reliable measurement touch to the user. Racal II BT 500 can be used by ready made or user created data collection program.
-
Ergonomic, lightweight and sturdy construction - Weight under one kilogram!
-
One-hand operation ensures fast and reliable measurement - measuring force on rollers stays the same at all times
-
Powerful microprocessor - Capability for demanding measurement and data collection programs
-
Narrow rollers and sturdy construction give accurate and a reliable measurement touch to the user
-
Racal II BT 500 can be used by a tailored data collection program or user defined program by Masser Developer -software
-
Small power consumption equals as long working time
-
Measuring range 2–500 mm
-
Accuracy +/-1 mm
-
Calibration Self calibrating
-
Weight 980 g
-
Operating temperature -20°C to +40°C
-
Storage temperature -30°C to +60°C
-
Sealing Waterproof IP67
-
Keypad Enter button and Toggle switch for menu select
-
Software support MASSER Developer or tailored software packages
-
Display 128 x 64 pixel graphic LCD, backlight
-
Communications Bluetooth, Serial port RS 232 C, USB Serial port adapter
-
Memory capacity 4 Mb
-
Power RECHARGEABLE BATTERY + MEMORY BACK-UP BATTERY
-
Working time 10-20 hours
-
Warranty 1 year
-
Options GPS Receiver
