Cotek - Model SR-1600 Plus - Rack Mount ...

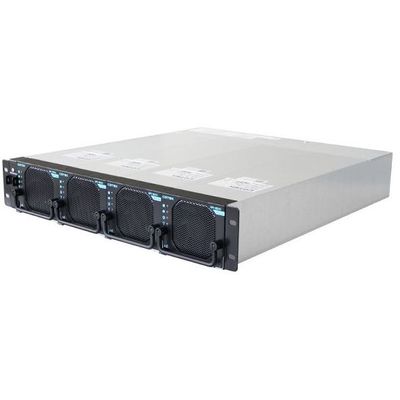

Cotek - Model SR-1600 Plus -Rack Mount Inverter

FromCotek Electronic Ind. Co., Ltd.

SHARE

Modbus Protocol Interface. Engineering Bootloader Mode. Monitoring Event Log. Direct Alarm Message. EPO mode (Emergency Power Off). Hot swappable module with LED indicator. Standard 19” 2U rack mount. Zero transfer time. DC Mode / AC Mode selectable (Dual input AC / DC). High efficiency up to 95% at AC Mode. Up to 32 modules can be connected in parallel (up to 51.2KW). CE / FCC approved.

Most popular related searches

emergency power

engine monitoring

Accessory:

Scalable rack

2U high ; 4 slots rack
Dimension(WxHxD): 484x85x509 mm / 19.06x3.35x20.04 inch

Front-end changeable fan module

Remove the screws and easy to replace the fan

By-pass switch

AC to DC switch
DC to AC switch

Dimension(WxHxD): 485x132x350 mm / 19.09x5.20x13.78 inch

MODEL: SR-1600-124 PLUS, SR-1600-148 PLUS, SR-1600-224 PLUS, SR-1600-248 PLUS
Main Features: New Intelligent Power Conversion Control~ (Software), Module design hot-swappable, redundancy rack mount inverter Parallelable module up to 32 pcs, Selectable DC Mode / AC Mode / AC Sharing
AC Output: Voltage100~120VAC; 200~240VAC
Rated Power:1200W/1600VA; 1600W/1600VA; 1200W/1600VA; 1600W/1600VA
Surge Power-
Output Waveform: Pure Sine Wave
Frequency: 50/60 Hz
DC Output Voltage-
DC Output Voltage Range-
DC Input Voltage: 24V / 48V
DC Input Voltage Range: 18~34VDC ± 3%; 36~68VDC ± 3%; 18~34VDC ± 3%; 36~68VDC ± 3%
Efficiency: AC Mode: 95% DC Mode: 89%; 90%; 90%; 91%
Operating Temperature:-25°C ~ 40°C ; Power De-rating from 40°C to 60°C
Storage Temperature:-40~70?
Safety: CE / FCC
Dimension (WxHxD): Module: 105x83x410 mm; Shelf: 446x85x509 mm
Weight (Net): Module: 3.8kg; Shelf: 6.5kg
Socket Type: Terninal
