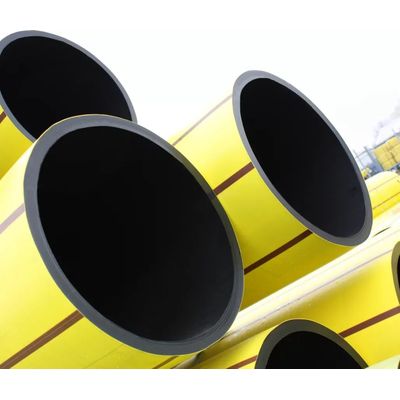

Radius ProFuse - Model PE100 -Peelable Gas Pipe

Engineered for Exceptional Jointing Integrity

ProFuse is optimised to deliver exceptional jointing integrity, offering a combination of reduced installation costs and enhanced quality for long-term system reliability. The unique peelable skin, ensures the pipe remains in pristine condition until jointing, aiding a high-quality jointing solution.

Superior in Diverse Installation Scenarios

ProFuse is your go-to for a range of installation techniques, including open-cut, slip-lining, horizontal directional drilling, and pipe bursting. It's robust protective skin is specifically designed to withstand the rigors of these methods, particularly in no-dig installations, offering enhanced durability and resilience.

ProFuse Eliminates Over Specified Wall Thickness

In many cases the need for “over specified wall thickness” to mitigate for any pipe wall damage during installation is eliminated. Eg, where an SDR11 pipe is selected due to potential abrasion damage, choosing Profuse allows the designer to specify SDR17 Pipe as the skin layer absorbs any abrasion. This benefits cost, capacity and pipe handling due to the light pipe weight.

Damage Resistance

The unique peelable skin safeguards the pipe from aggressive installation methods, which results in a thinner pipe for improved product efficiency.

Project Time & Cost Savings

The peelable skin on ProFuse means you can save up to 42% of time on joint preparation alone.

Reduced Project Carbon Footprint

Using ProFuse 400mm as an example, you can reduce carbon emissions by 28.3%, with a CO2 reduction of 2,334 kg per 100 metres.

Efficient Jointing

The peeled skin leaves a cleaner surface for a more reliable joint, whether you use electrofusion or butt-fusion welding techniques. Reducing the risk of leakage.

• Application: Gas
• Pipe Material: Polyethylene
• Pipe Colour: Yellow with brown stripe
• Diameter Range: 180 mm to 630 mm | Bespoke: Yes
• SDR: 17.6 and 21
• Lengths: 6 m, 12 m | Bespoke: Yes
• Compliance / Approvals: GIS PL2-8, EN 1555-2
• Approved Fittings & Jointing Techniques: Butt-fusion
• Spigot fittings: Electrofusion fittings
• Suitability: New installations
• Pipe replacement: Pipe rehabilitation
• Installation Techniques: Sliplining
• Directional drilling: Pipe bursting
• Subline DR: Open-cu
